Low-profile stabiliser legs with 76mm travel for compact caravans, featuring dual grease system and nylon base plate for stability.
These short-travel stabiliser legs offer dependable caravan support and stability in a compact design. Built from heavy-duty materials, they operate smoothly with a cordless drill or manual handle and ensure precise control with minimal effort.
Features:
Heavy-duty design allows leveling with a cordless drill or manual handle
76mm vertical travel for raising caravan to change a flat tyre
Stabilises caravan at 30º
Load tested up to 1.8 tonne per leg
Bolts into existing stabiliser mounting points
Push/Pull handle for easy release and rotation
Large base plate for maximum stability
100mm pipe extensions available

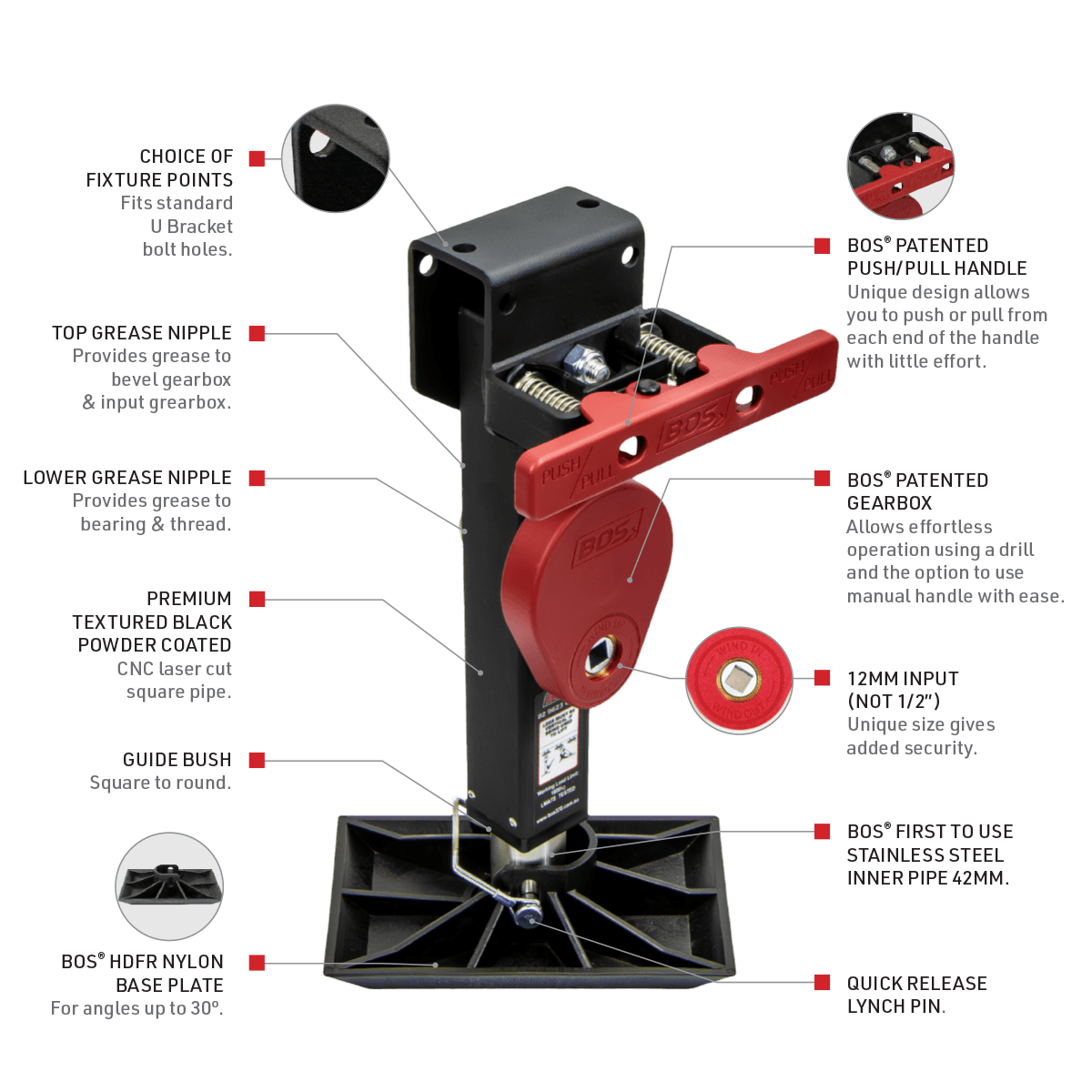

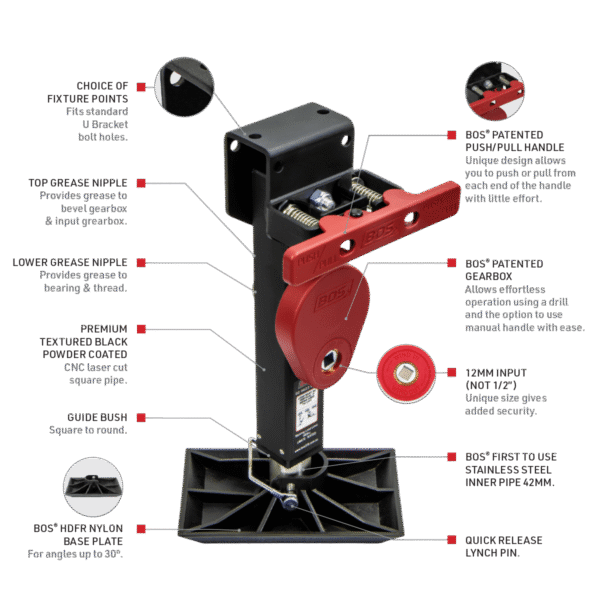

Choice of fixture points fits standard U Bracket bolt holes
Top grease nipple provides grease to bevel gearbox & input gearbox
Lower grease nipple provides grease to bearing & thread
Premium textured black powder-coated CNC laser-cut square pipe
Guide bush: square to round
Nylon base plate supports angles up to 30º
12mm input allows drill or manual operation
Stainless steel inner pipe 42mm
Quick release lynch pin
Kit Includes:
2x Base Plate (Nylon) – 010-060
Manual Handle – 020-025
12mm Drill Drive Piece – 020-007
2x Quick Release Pin – 020-018
BONUS Stubby Can Cooler – 010-035
BONUS Stubby Bottle Cooler – 010-036
Optional Accessories:
Stainless steel pipe extensions 100mm – 440-035 (Sold Separately)
Model: 440-041
Maximum Load per Leg: 1.8 tonne
Extended Vertical Travel: 76mm
Material: Powder-coated square pipe, stainless steel inner pipe
Base Plate: Nylon, supports angles up to 30º
Drive Input: 12mm, compatible with drill or manual handle
Warranty: 5 Years
