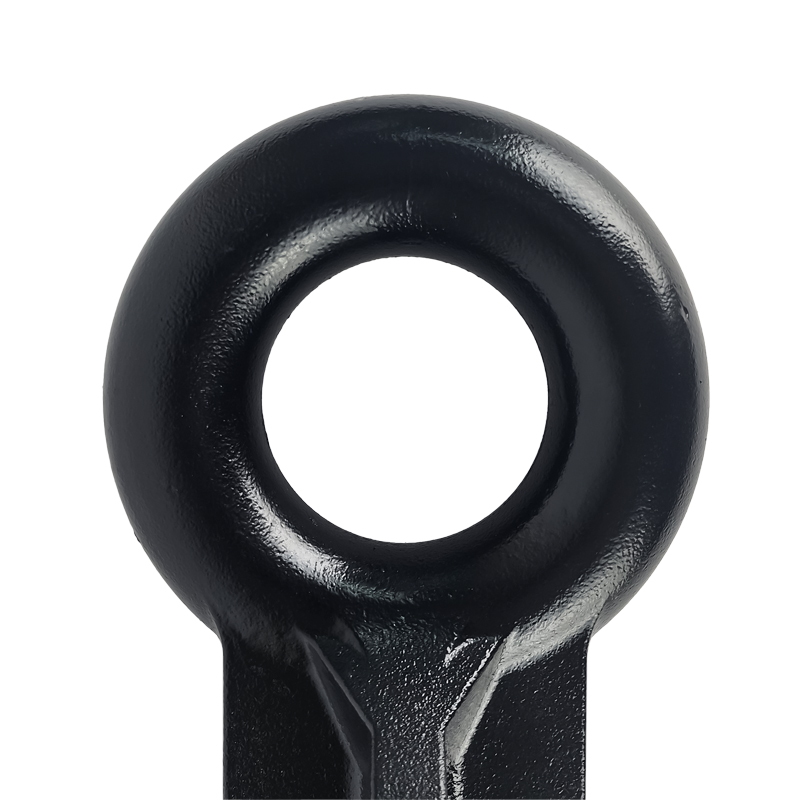

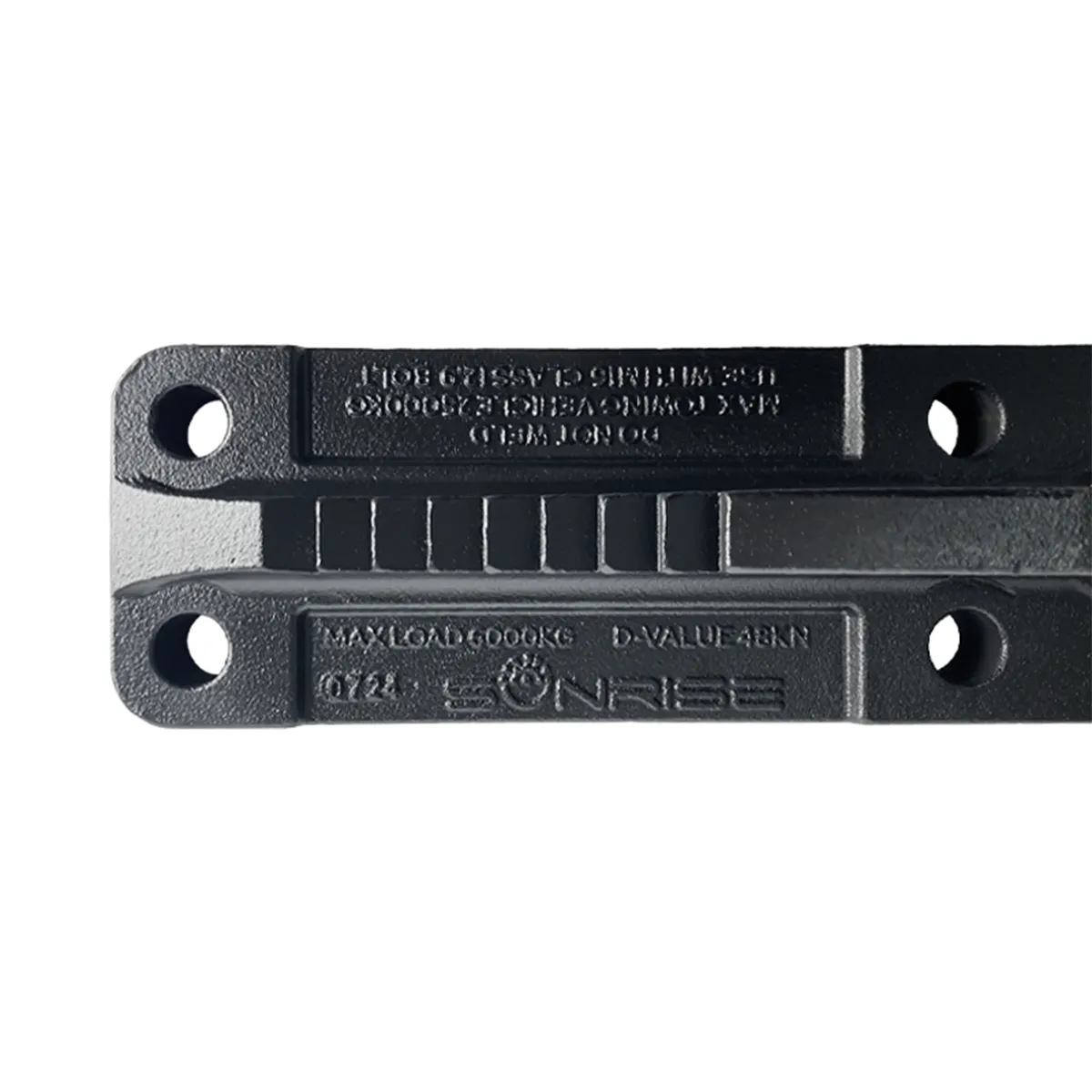

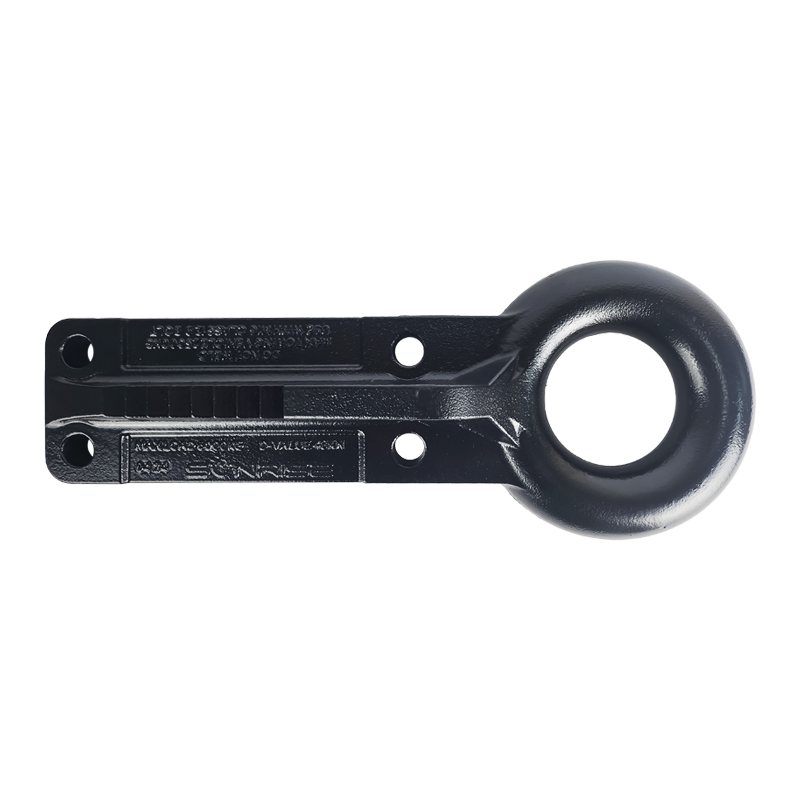

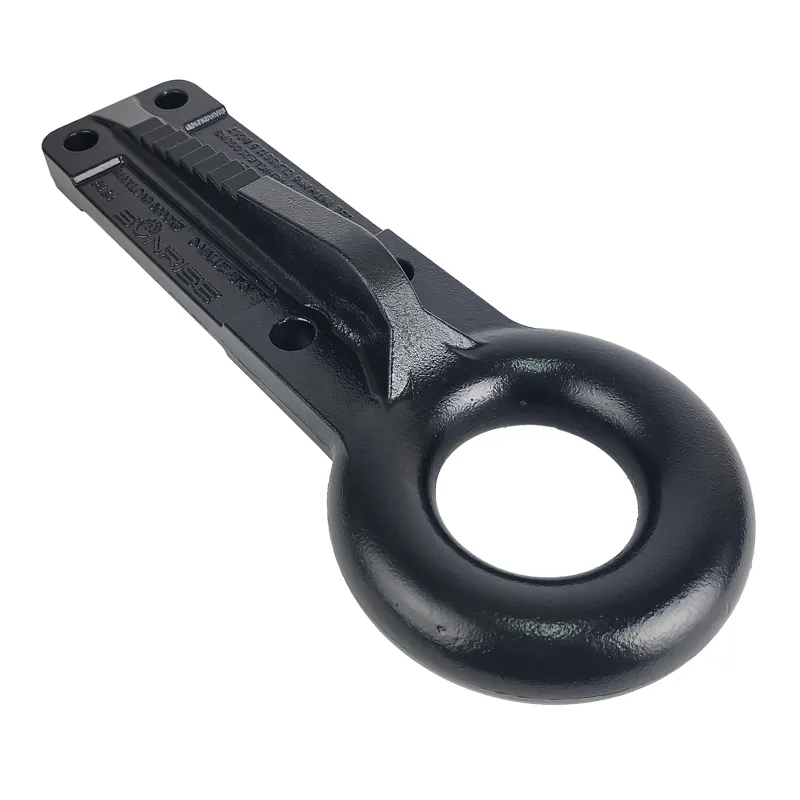

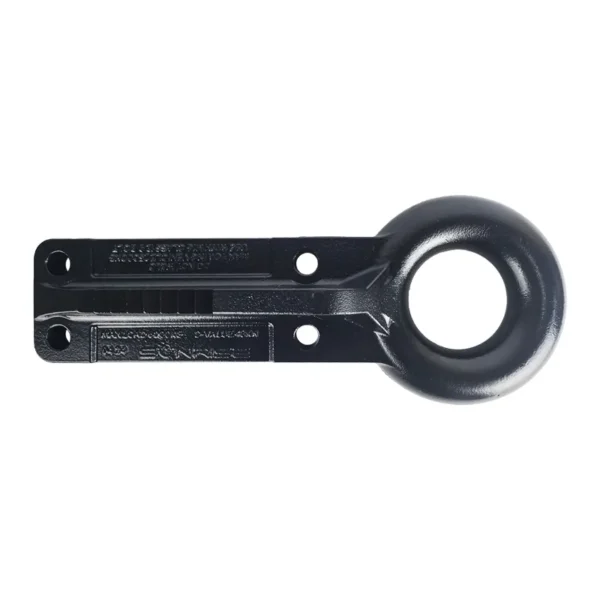

Fixed ring coupling with 6000kg (6T) rating and black finish. Suited for trailers with a GTW less than 6000kg and used in conjunction with a pintle hook. ADR Approved and Tested.
Fixed ring coupling suited to trailers with a GTW less than 6000kg, often used for attaching trailers to heavy commercial trucks, or for driving over rough and uneven terrain. Used in conjunction with a pintle hook, this coupling gives you a rating of 6000kg (6T) and has a D-Value of 48kN. This coupling is built to last the harsh Australian weather due to its corrosion resistance. Dynamically tested & Compliant to ADR 62/02 Mechancial connections between vehicles. Component Type Approval Number CTA-061643. This coupling is ADR approved and tested. All four bolt holes must be fastened with M16 class 12.9 high tensile bolts.

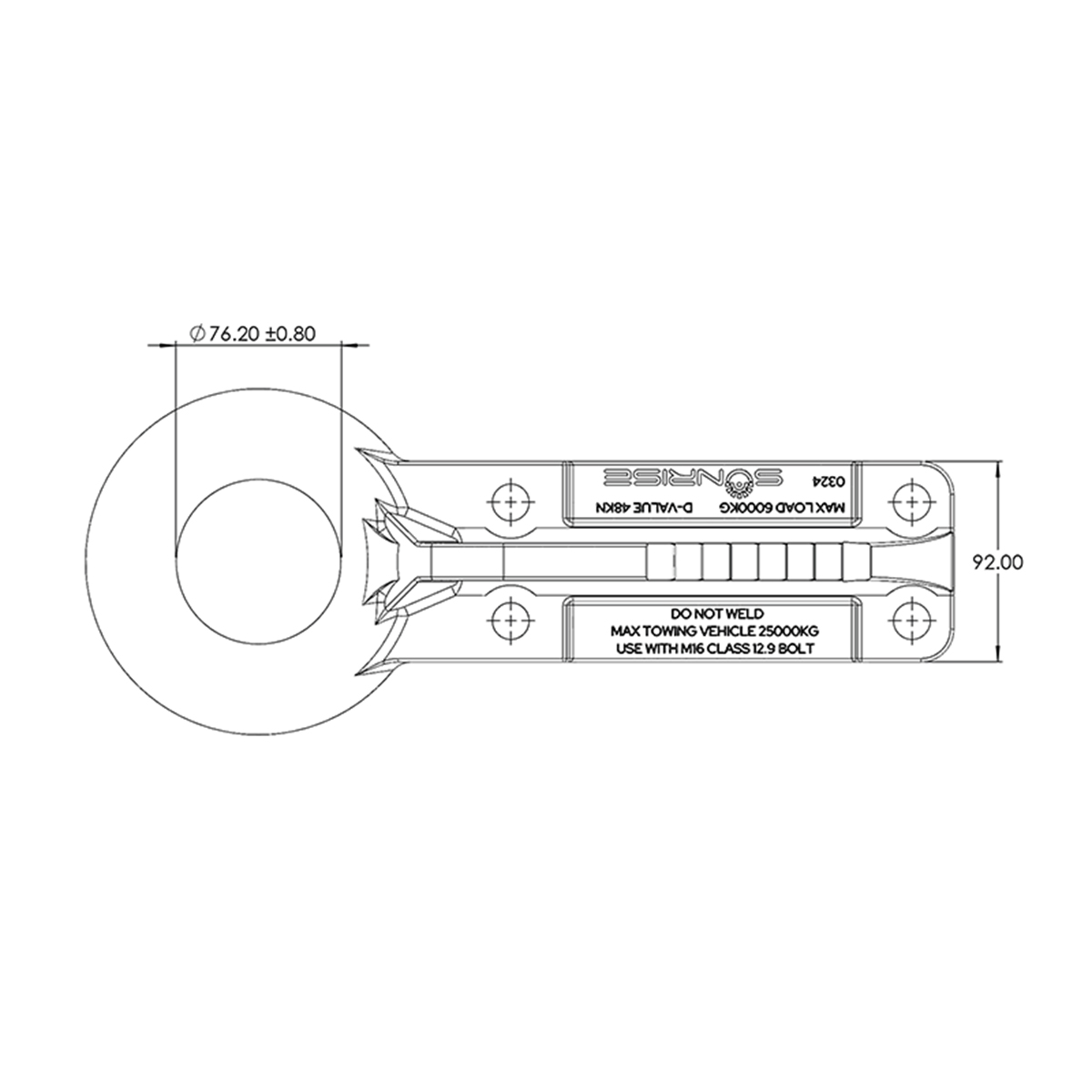

Advantages| Specification | Value |
|---|---|
| Suits | Pintle Hook |
| Rating | 6000kg (6T) |
| Bolt Pattern | 185 x 55mm |
| Hole Diameter | 17mm |
| Centre of ring to first hole | 116mm |
| Ring ID | 75mm / 3″ |
| Ring OD | 160mm |
| Finish | Black |
| Application | Bolt On (Use 4 x M16 Class 12.9 High Tensile) |
| D-Value | 48kN |
| ADR | ADR 62/02 Approved & Tested |
| CTA Number | CTA-061643 |
