Hydraulic Tipper Kit Complete

The  hydraulic tipper kit cylinder is made of high-grade carbon steel tubes, ensuring excellent stability and flexibility during tipping. Its mechanical properties allow it to withstand higher stress levels, making it ideal for heavy-duty applications. Our cylinders have a significantly higher loading capacity than those made with light-duty welded tubes commonly found in other cylinders. cylinder utilizes hot rolled tubes which provides superior structural strength and load-bearing capabilities, in contrast to welded tubes which are prone to weakness at the welding line.

Advantages:

• Manufactured exclusively from seamless steel tube
• Internal and external burnishing process
• Increased seal performance and life
• Hardern chrome resists salty air & water
• Maximum safety and service life
• Ultra high yielding and tensile strength

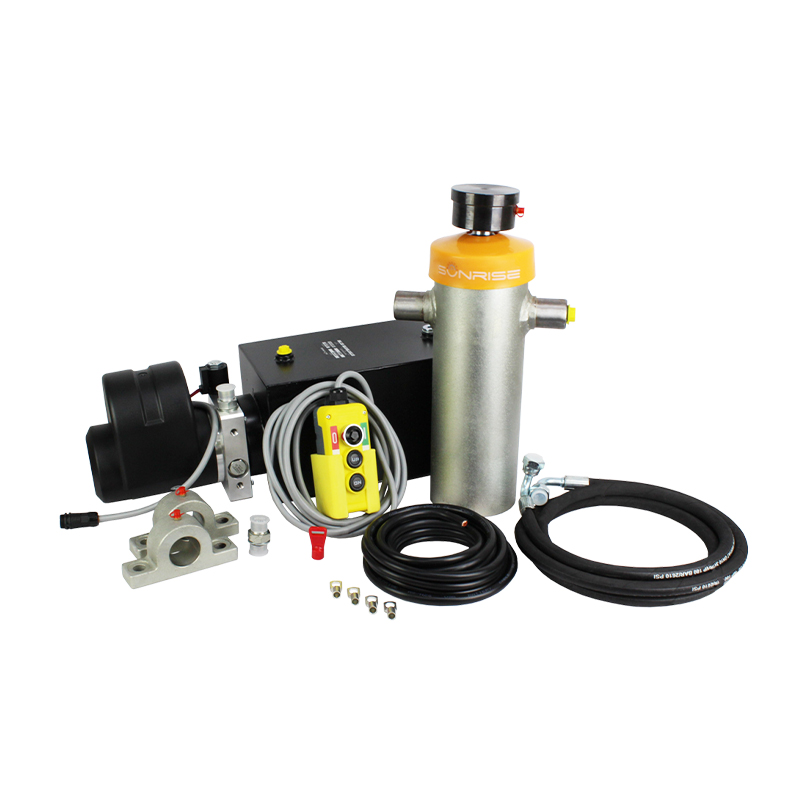

What’s Included:

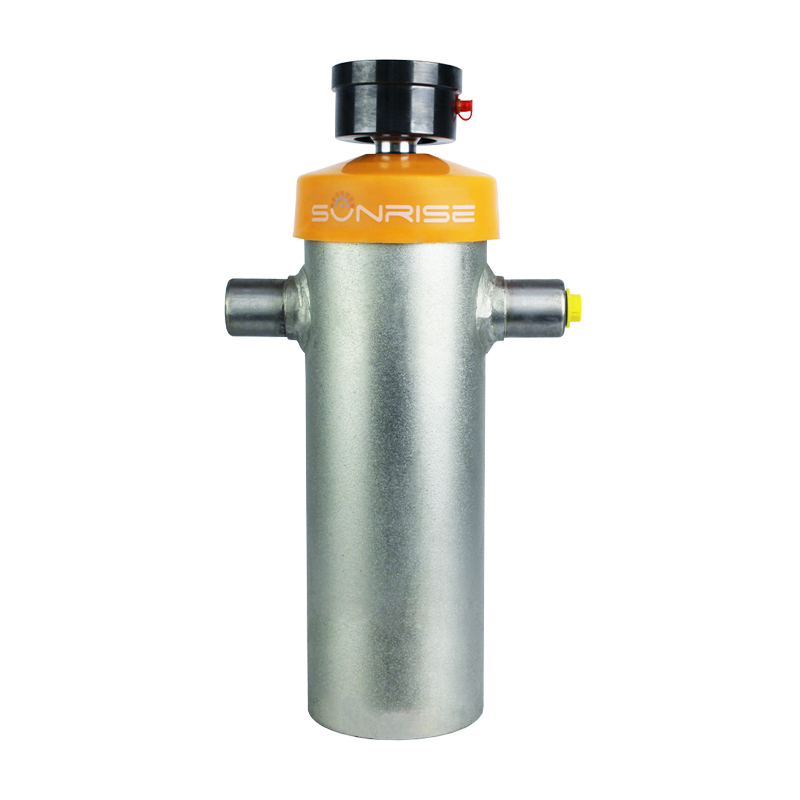

• 1 x Hydraulic Ram (Pick your stroke and stage)

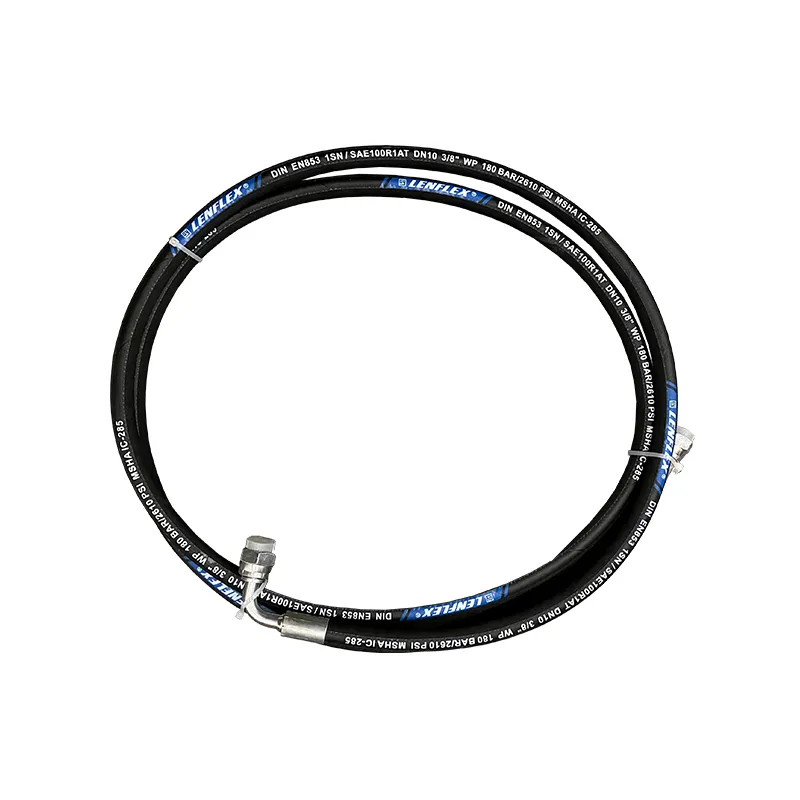

• 1 x Hose and Fittings

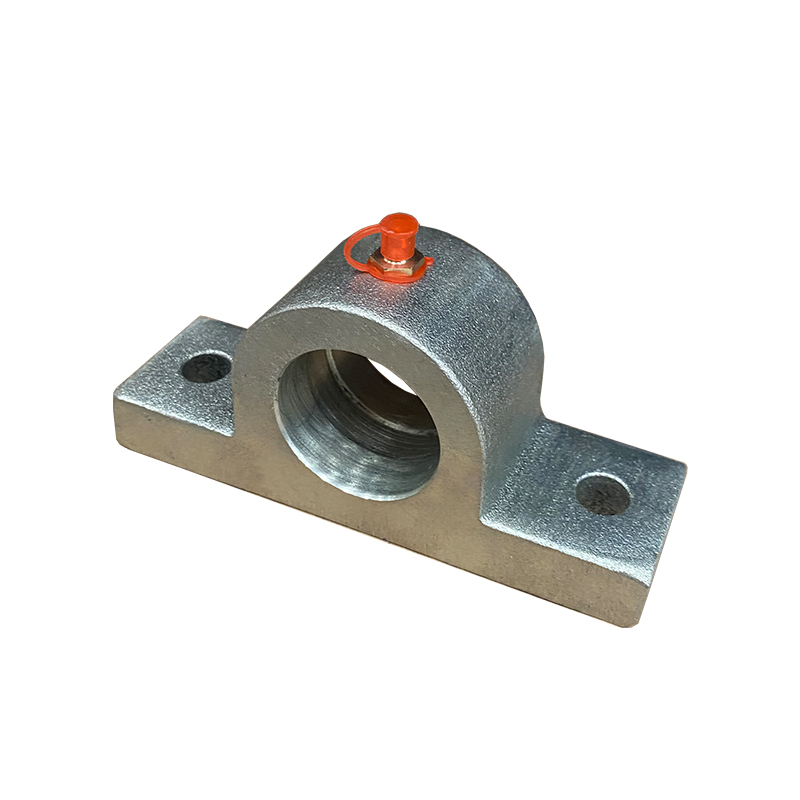

• 2 x Hinges for Ram

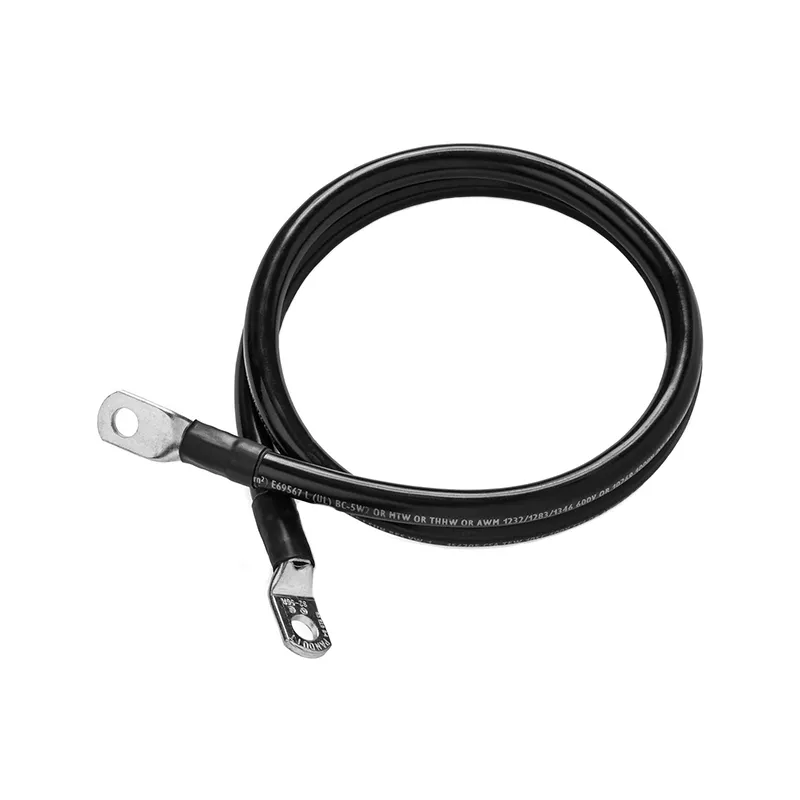

• 1 x Terminal Lead

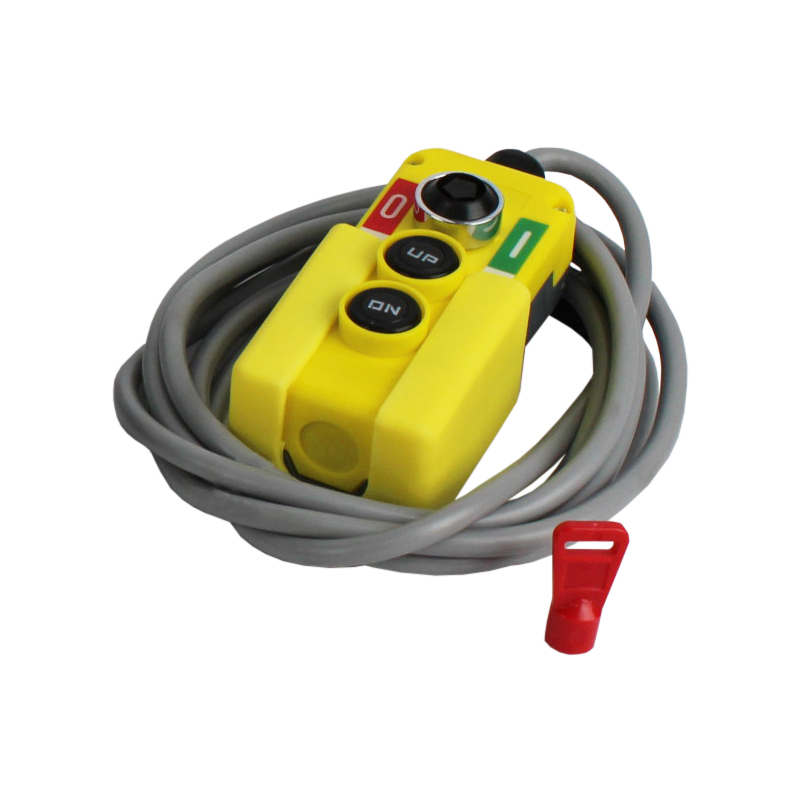

• 1 x Remote with Switch

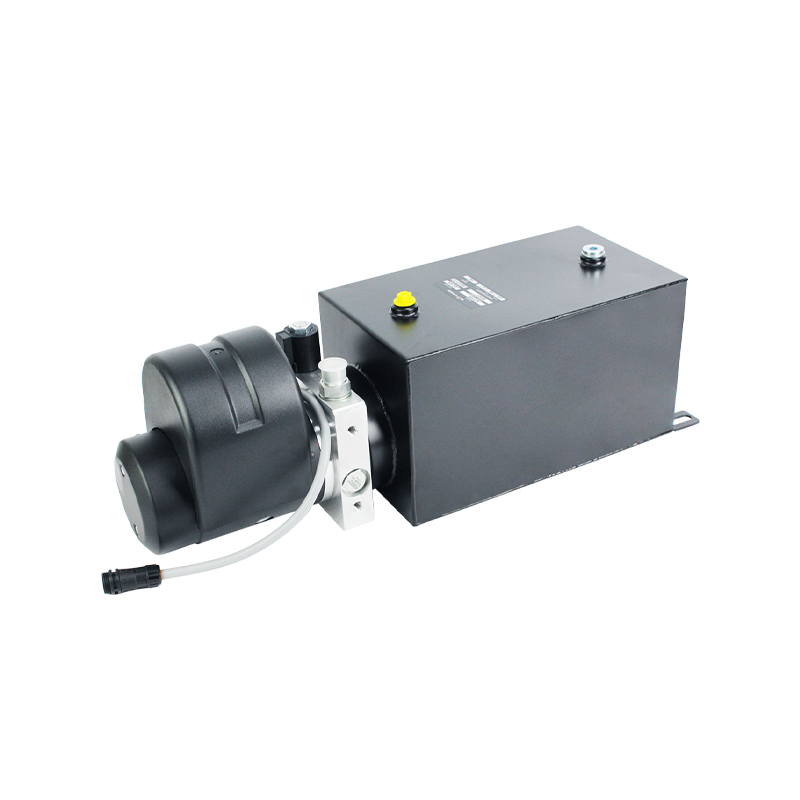

• 1 x 12V Pump Tank

This is a bulky item that must be sent to business/commercial address with a forklift on site. Alternatively, goods will be sent to the nearest depot for collection. Additional charges apply for residential delivery.

• Superior seal and wiper systems to ensure they operate in extreme environments
• Solid stage design without stop limited rings is an unsurpassed solution
• Hot rolled hardened for exception smoothness and extra strength

Specification	Value
Capacity	4.5T to 6T
Stages	Pick 4,5 or 6
Stroke	Pick 825mm, 1000mm 1030mm, 1225mm
Pump voltage	12V
Volume of power pack	8L
Hydraulic oil temp	-40°C to +80°C
Max duration of extension	2 hours
Dimensions of the pump	620 x 185 x 160mm approx.
Max Working Pressure	200 Bar
Dimensions	Refer to Resources & Downloads
Fluid Type	46 Grade Hydraulic Oil
Power Pack Amp Draw	310 Amp
