The electric jack stand is a strong and durable solution to help lower and raise your trailer and caravan. Easily power the jack using most standard 12V batteries or from your caravan.

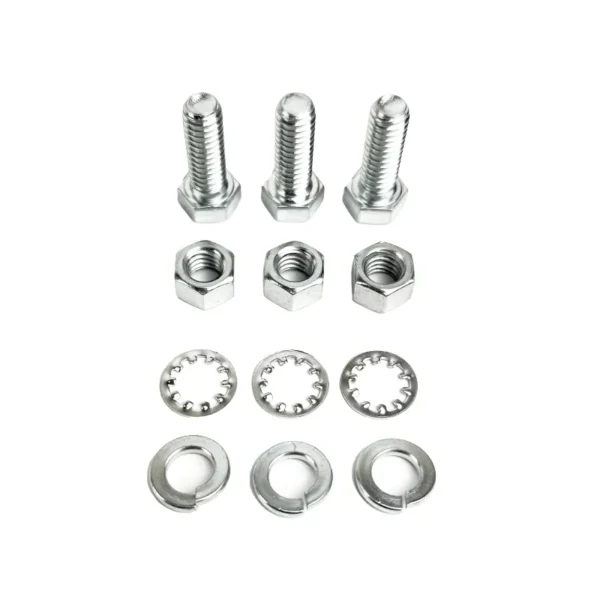

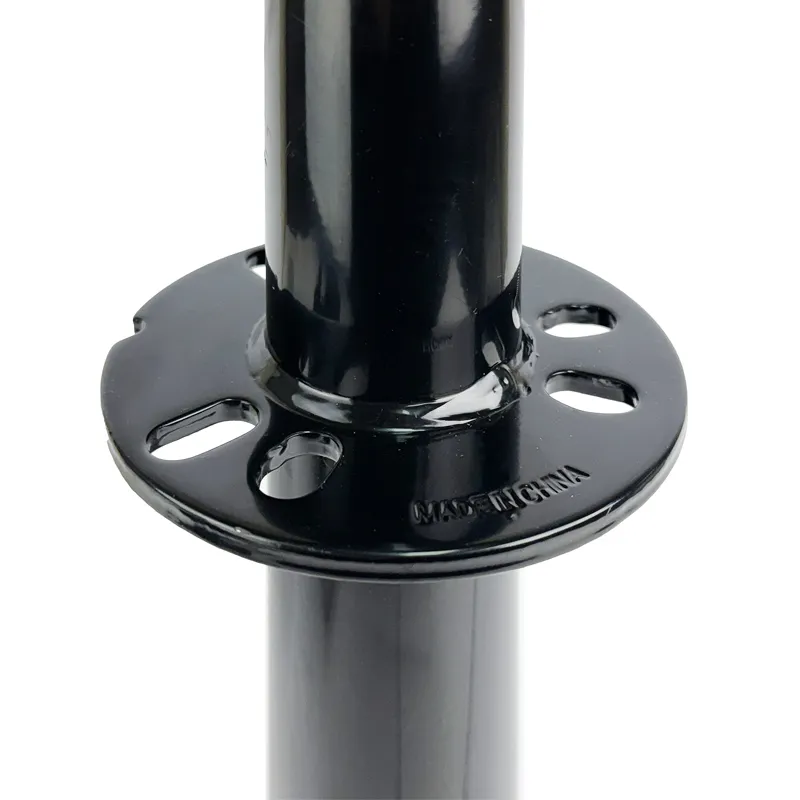

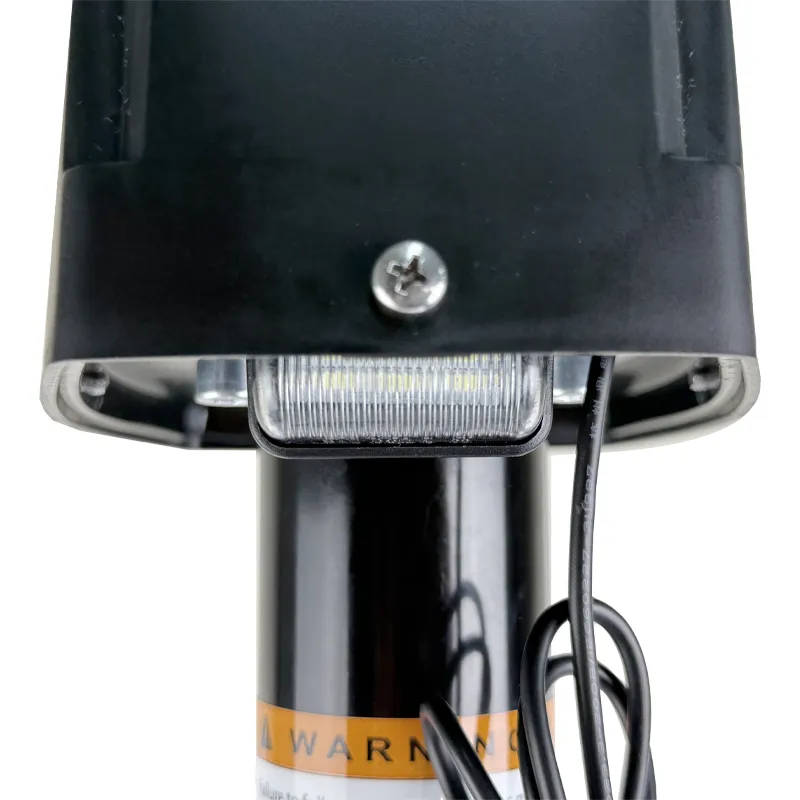

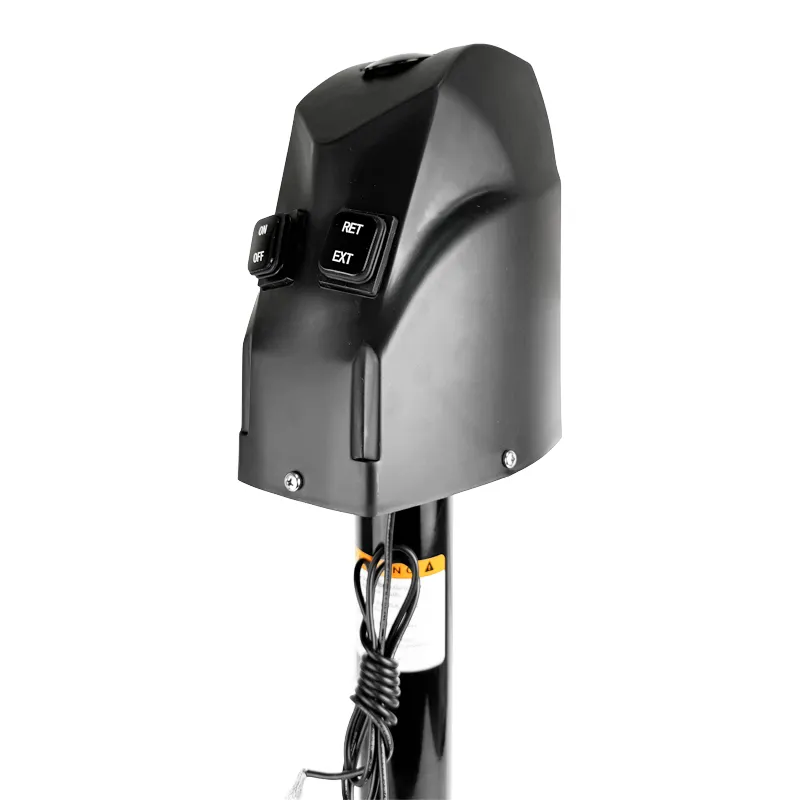

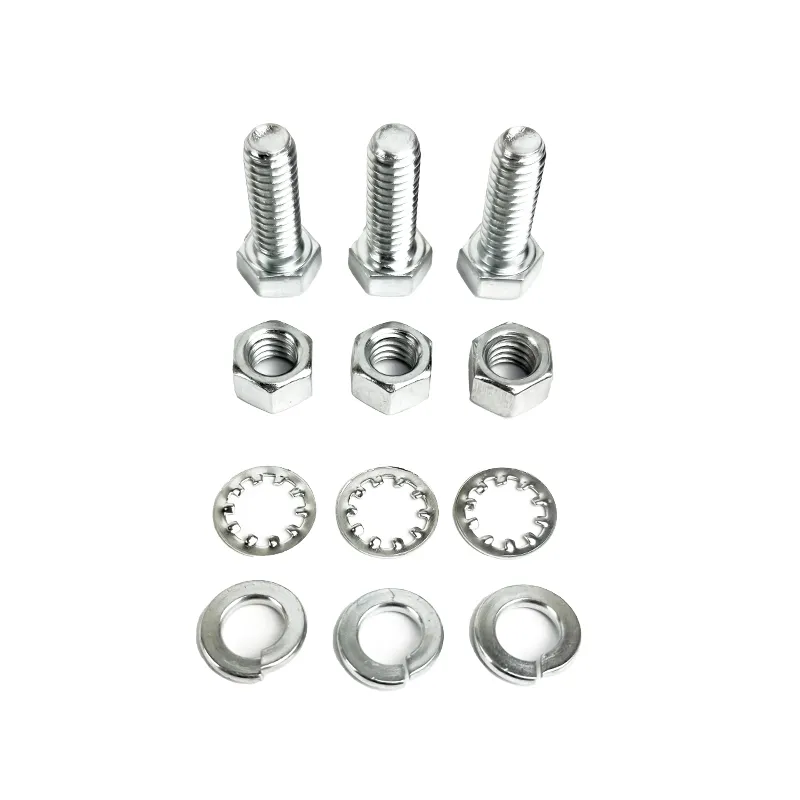

Skip manually winding and instead easily raise or lower your trailer with this simple 2-toggle switch-controlled electric jack. One switch controls the raising and lowering whilst the other is an on/off switch for a bright LED light which is aimed at the bottom, facing the coupling and also towards the vehicle, making it handy for illuminating tasks done in the dark. Fitted onto the a-frame, a simple bolt-on application through the three hole mount and a battery connection is all that is required for installation. This jack has a retracted height of only approx. 782mm for compact storage and an extended height of up to 1342mm in which both directions are automatically stopped at maximum direction. It also features an emergency manual override in the event there is no power supplied. The body of the electric jack is designed to work as the neutral (negative) wire when mounted properly to the A-frame of the trailer. If you are mounting the jack on the side of trailer you may need to run an additional wire from the chassis of trailer to the flange of the jack to earth it properly. Refer to our Resources and Downloads for additional help. No Clamps are included
Advantages12V Voltage
| Specification | Details |
|---|---|
| Rating | 4000 lbs (1814 kg) |
| Type | Bolt On |
| Material | Steel |
| Retracted Height | 782 mm |
| Extended Height | 1342 mm |
| Tube OD | 57 mm |
| Drop Leg Hole Spacing | 45 mm |
| Internal Finish | Zinc Plated |
| External Finish | Black Powder Coated |
| LED Light | Included |
| Manual Override Handle | Included |
| Voltage | 12V 28 AMP |
| Total Extension | 22″ (560 mm) |
