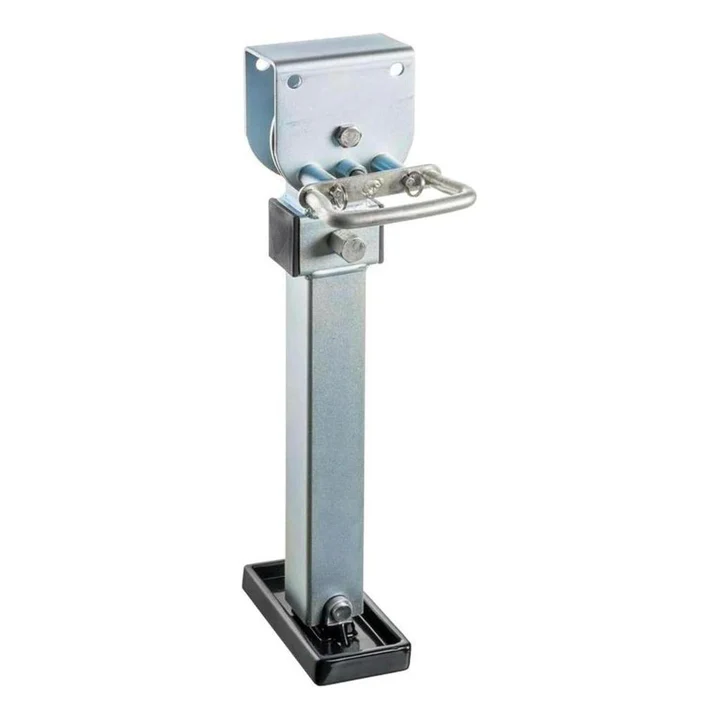

Heavy-duty 520mm zinc-coated drop-down stabilizer leg designed to provide strong and reliable support for caravans, trailers, and campers. Built for long-lasting corrosion resistance and simple operation.
This 520mm Drop Down Stabilizer Leg is engineered to stabilize your trailer or caravan when stationary. It includes a welded mounting plate and bolts, allowing easy installation, removal, or replacement when required.

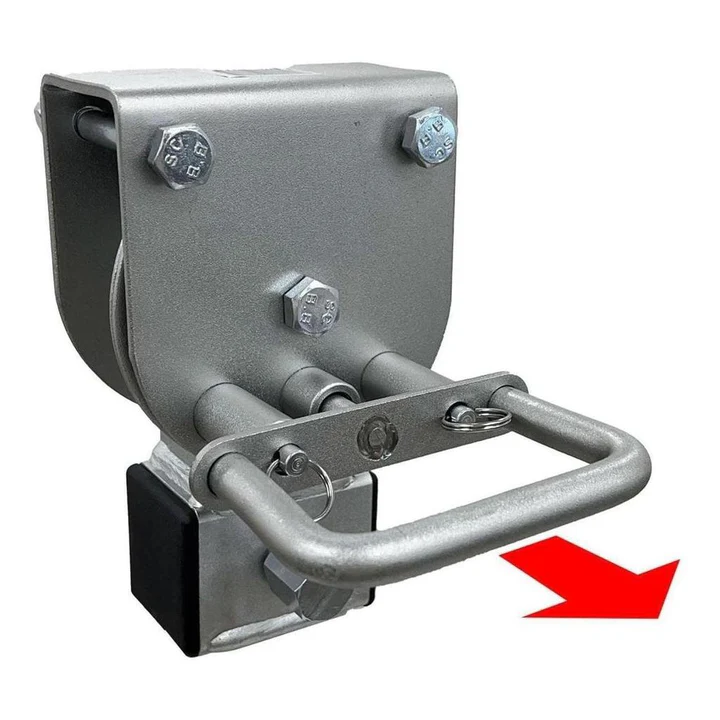

The leg smoothly swings from the horizontal travel position to vertical or angled positions in seconds, requiring only minimal winding to achieve balance. Its robust zinc-coated steel construction ensures strength, durability, and protection from corrosion, scratches, and wear.
Tested to meet the standards set by the Caravan Industry Association of Australia (CIAA), this stabilizer leg ensures dependable performance across various terrains and conditions.

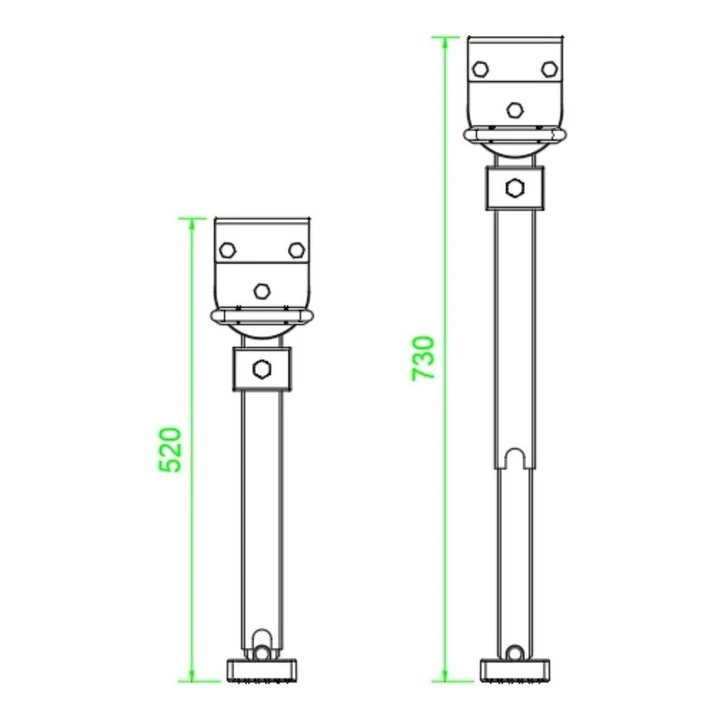

Height (Extended): 730mm
Height (Closed): 520mm
Load Rating: 450kg
Weight: 5.4kg

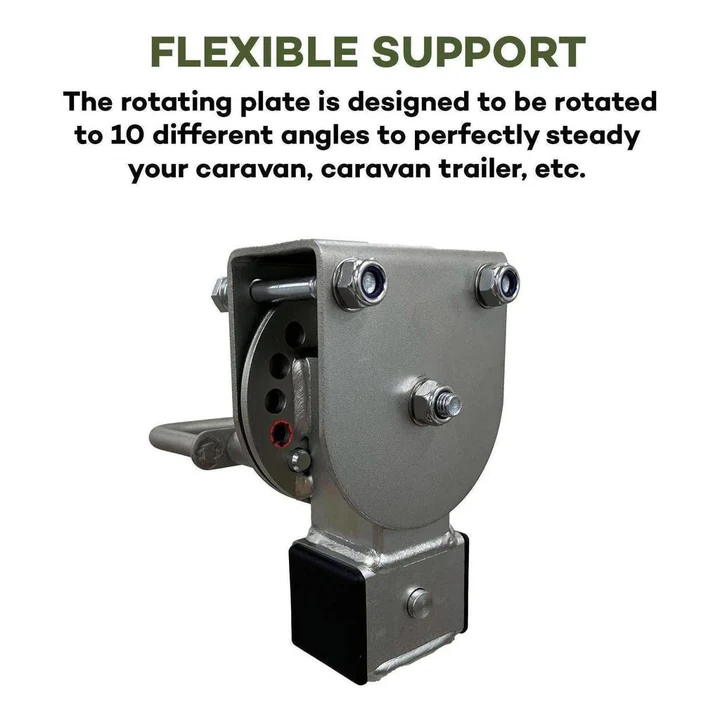

Rotation: Adjustable rotating plate with 10 different angle options for precise stability
Base Support: Heavy-duty base plate offers solid support on multiple terrains, with 180° flip capability

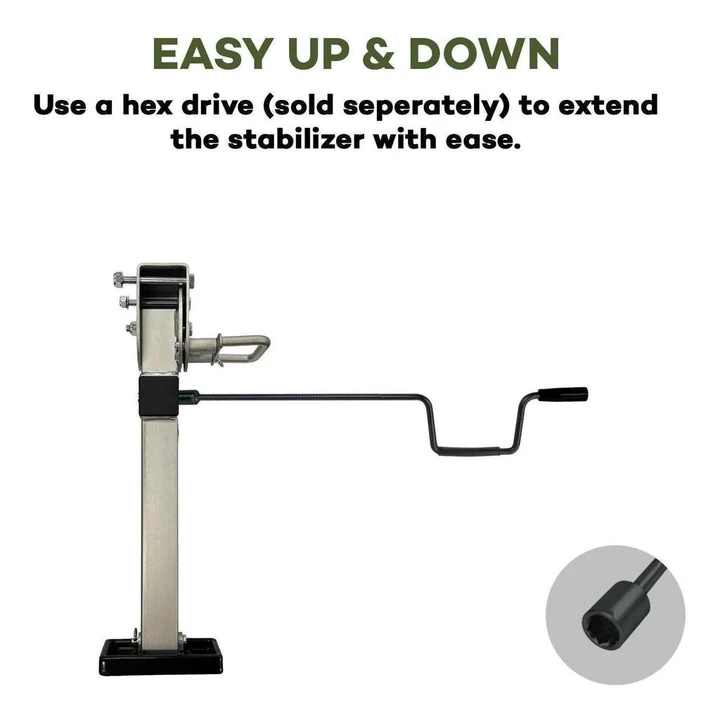

Operation: Quick raise and lower function using a 19mm hex drive winder handle (sold separately – SKU: ILU-DROPLEGBRACE)
Construction: Heavy-duty zinc-coated steel for enhanced rust and corrosion resistance
Suitable For: Caravans, camper trailers, boat trailers, motorcycle trailers, and other towed vehicles
Important Notes:
Designed only for stabilizing purposes – not for lifting or jacking.
On soft or uneven surfaces, stabilizer pads are recommended for additional support.
