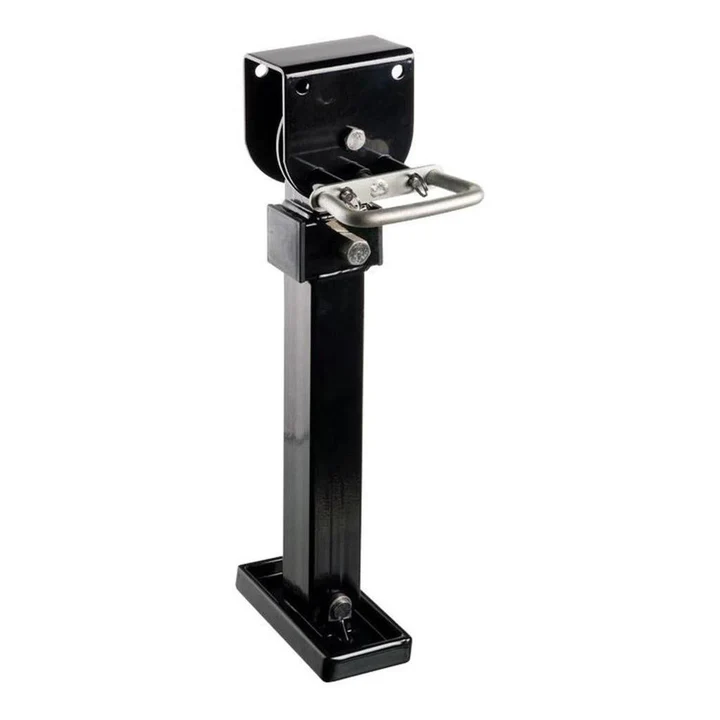

Heavy-duty 520mm black powder-coated drop-down stabilizer leg designed to provide solid support and balance for caravans, campers, and trailers. Built for durability, stability, and corrosion resistance.
This 520mm Drop Down Stabilizer Leg delivers exceptional strength and stability for your trailer or caravan while stationary. Designed for easy installation, it comes with a mounting plate that can be welded on and then bolted into place using the included hardware. The leg can also be easily removed or swapped when needed.

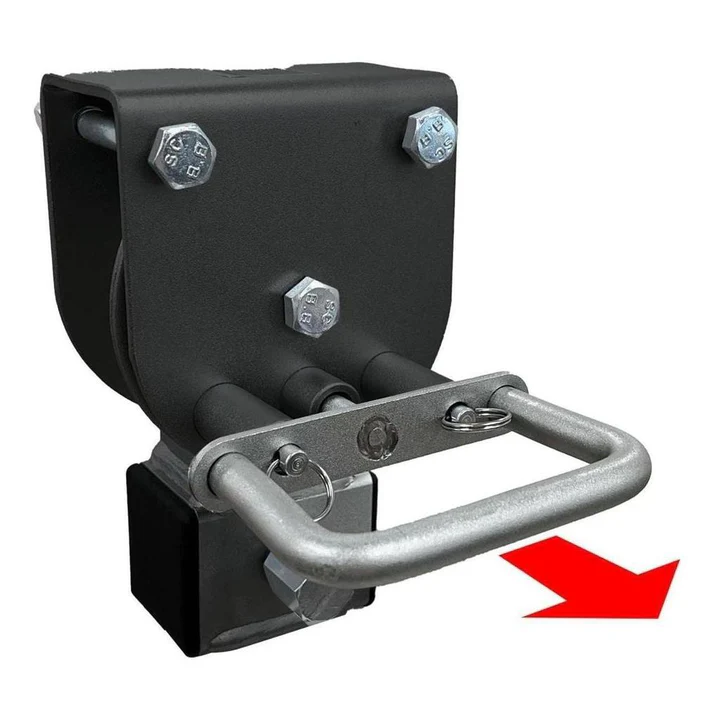

The adjustable drop-down design allows the leg to swing from the horizontal travel position to vertical or angled positions within seconds, requiring only minimal winding to achieve a stable setup. Its heavy-duty steel construction with a black powder-coated finish ensures long-lasting durability and resistance to corrosion, rust, and wear.
Manufactured to meet the standards set by the Caravan Industry Association of Australia (CIAA), this stabilizer leg guarantees reliability and performance under a variety of conditions.

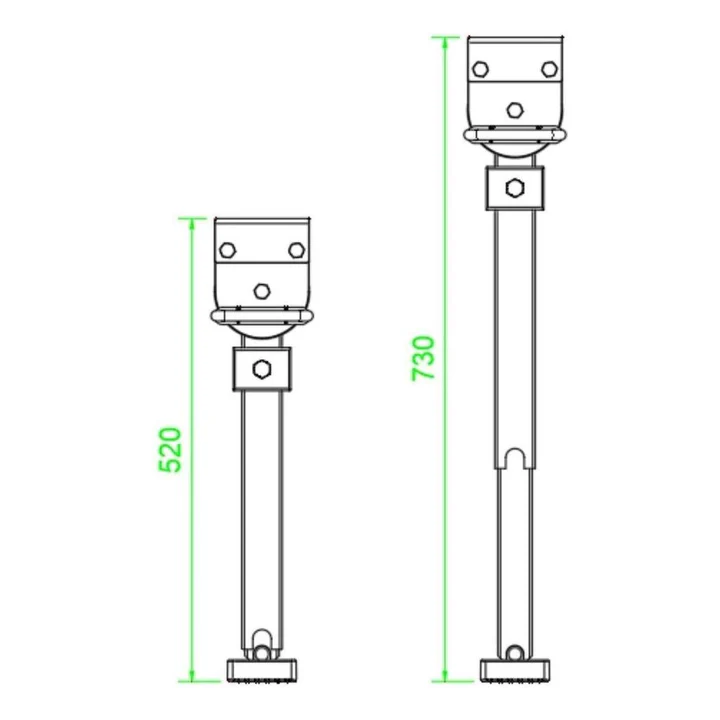

Height (Extended): 730mm
Height (Closed): 520mm
Load Rating: 450kg
Weight: 5.4kg

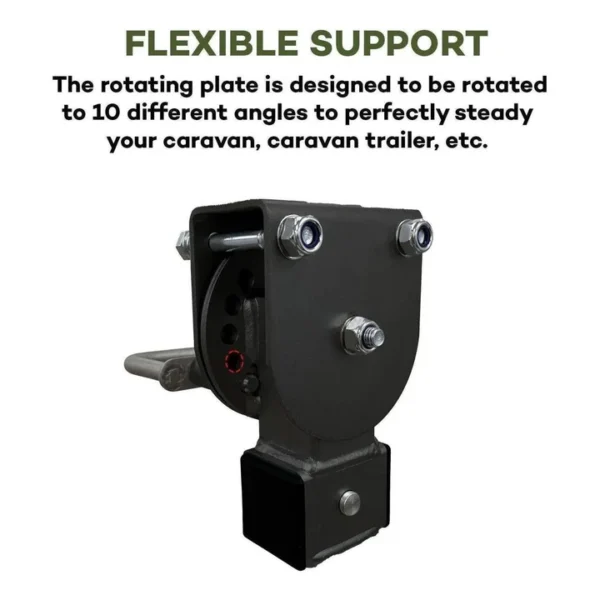

Rotation: Rotating plate adjusts to 10 different angles for precise leveling on uneven terrain
Base Support: Heavy-duty base plate provides excellent ground contact, with a 180° flip option for better surface stability

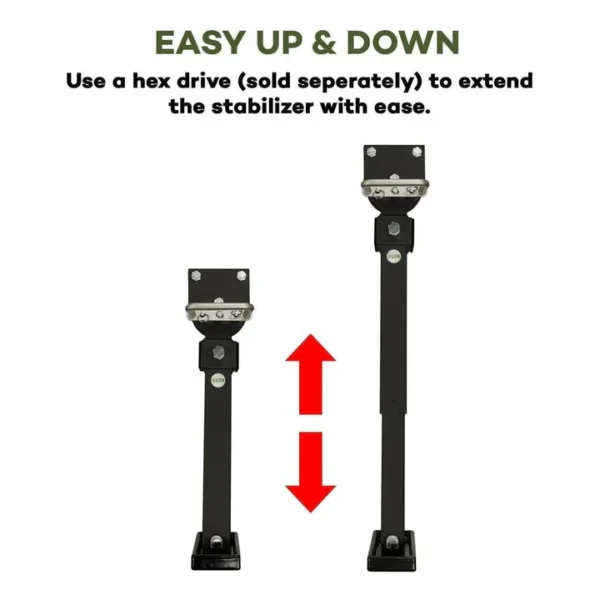

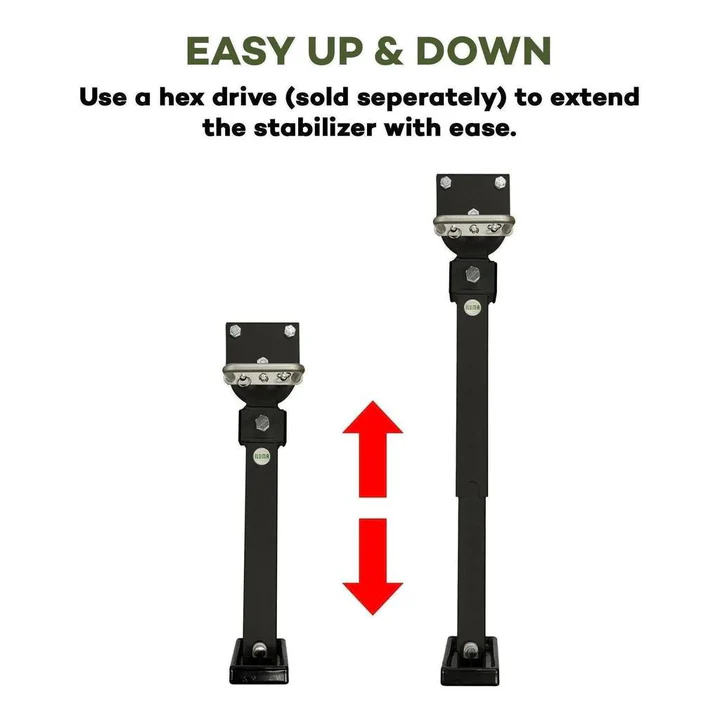

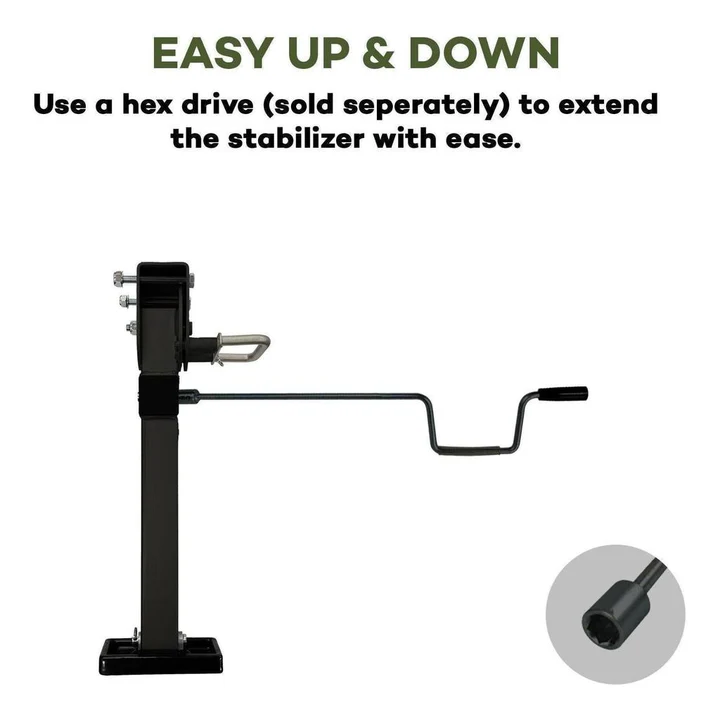

Operation: Quick and easy up/down movement using a 19mm hex drive winder handle (sold separately – SKU: ILU-DROPLEGBRACE)
Construction: Heavy-duty steel with durable black powder-coated finish for corrosion and impact resistance
Suitable For: Caravans, camper trailers, boat trailers, motorcycle trailers, and general-purpose trailers
Important Notes:
Designed only for stabilizing purposes – not suitable for lifting or jacking.
On soft or uneven surfaces, it is recommended to use stabilizer pads for added support.
