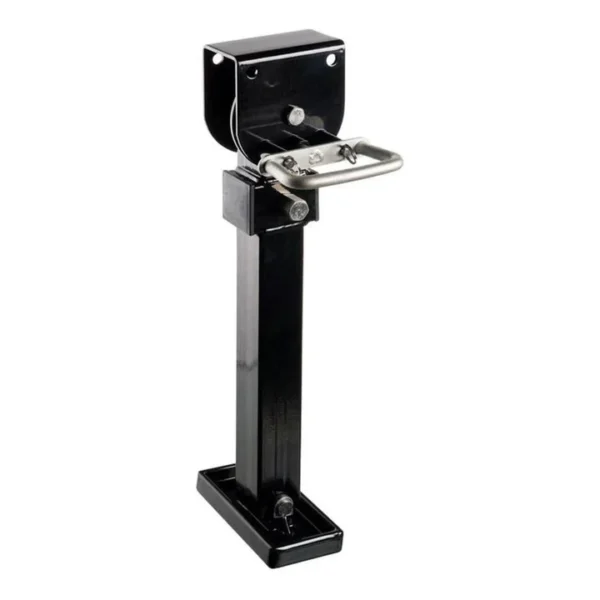

420mm Drop Down Corner Steady designed to stabilise caravans, trailers, and campers when parked. Features durable black powder-coated steel construction, smooth operation, and a 450kg load rating.

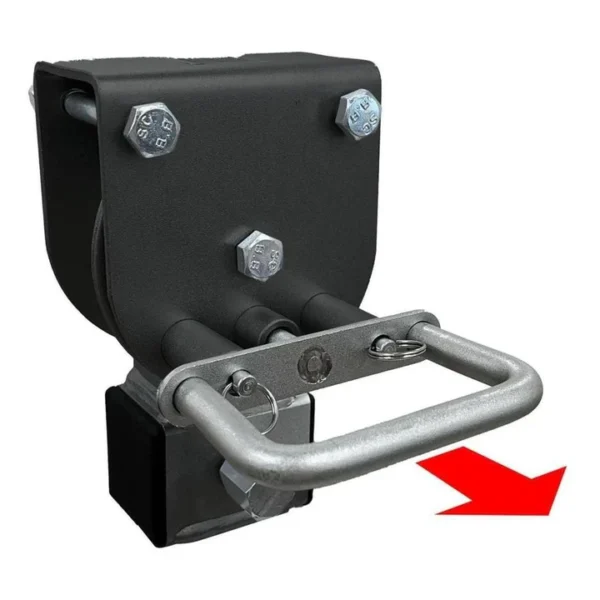

This 420mm Drop Down Corner Steady is built for quick and stable setup of trailers, caravans, and campers. It includes a weld-on mounting plate and bolt-on bracket for easy installation and replacement. The adjustable design allows rotation through multiple angles for a perfect stabilising position in seconds.
Constructed from heavy-duty steel and finished in a rust-resistant black powder coat, it provides long-lasting durability and strength. Compatible with the 19mm Hex Winder Tool (sold separately) for fast, easy operation.
Note: Designed for stabilising only – not for lifting or jacking. For soft or uneven ground, stabiliser pads are recommended.

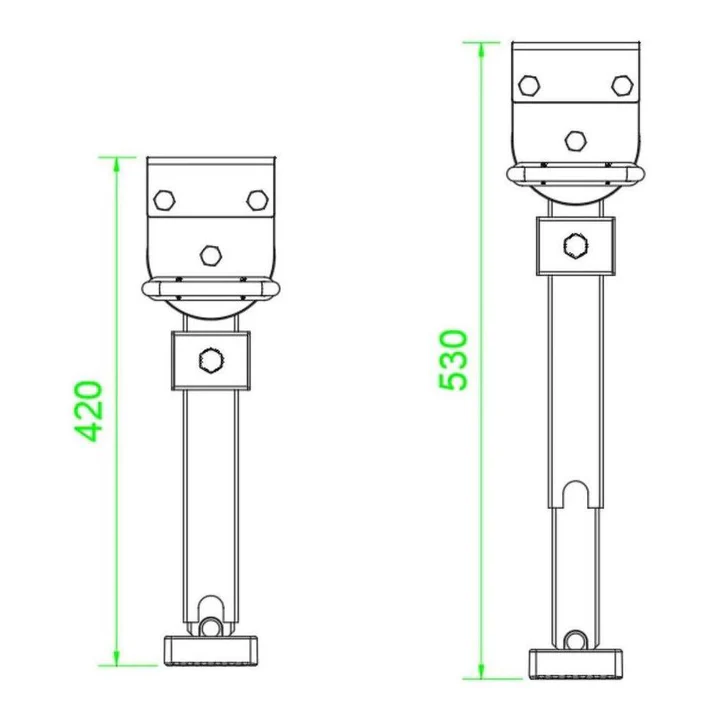

Height (Fully Extended): 530mm
Height (Closed): 420mm
Load Rating: 450kg
Weight: 4.65kg

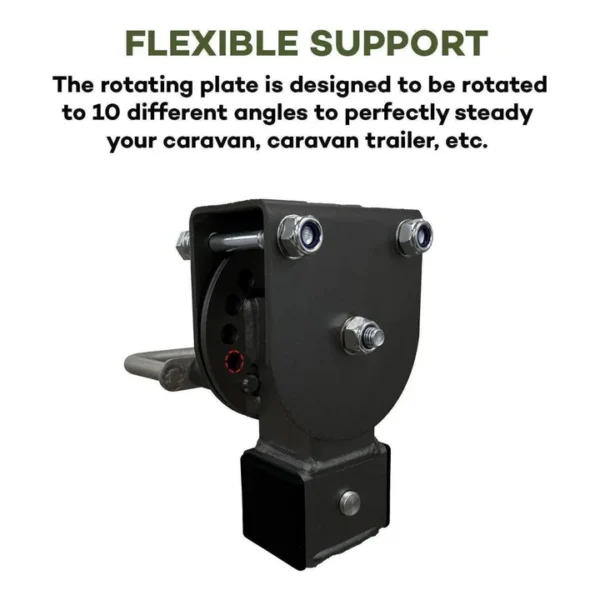

Rotation: 10 adjustable angle positions for precise stability
Base Support: Heavy-duty base provides solid contact with 180° flip capability

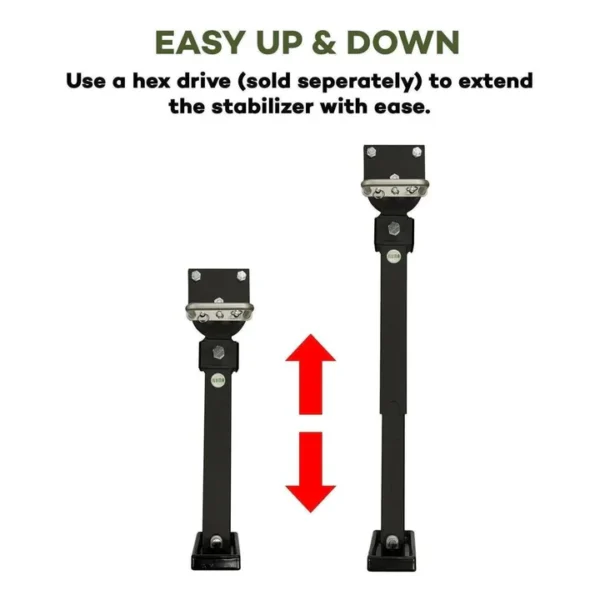

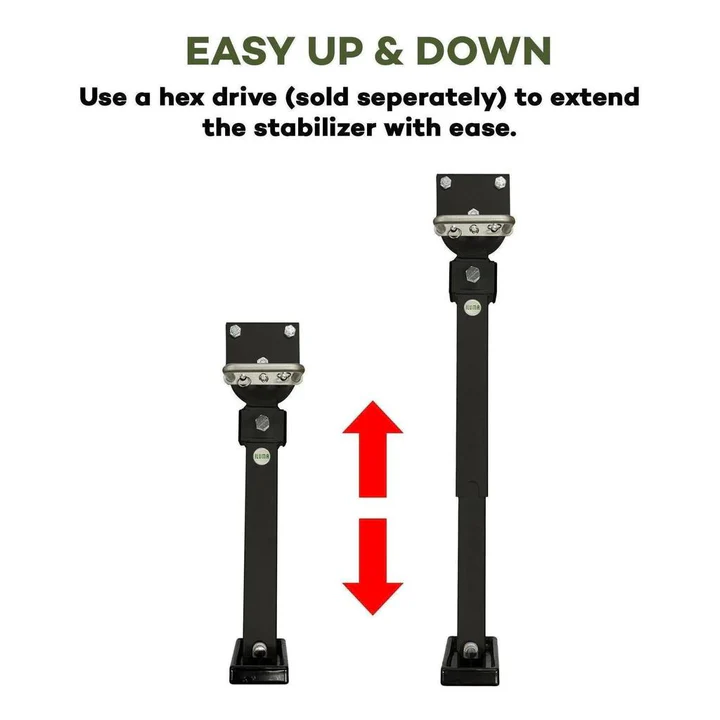

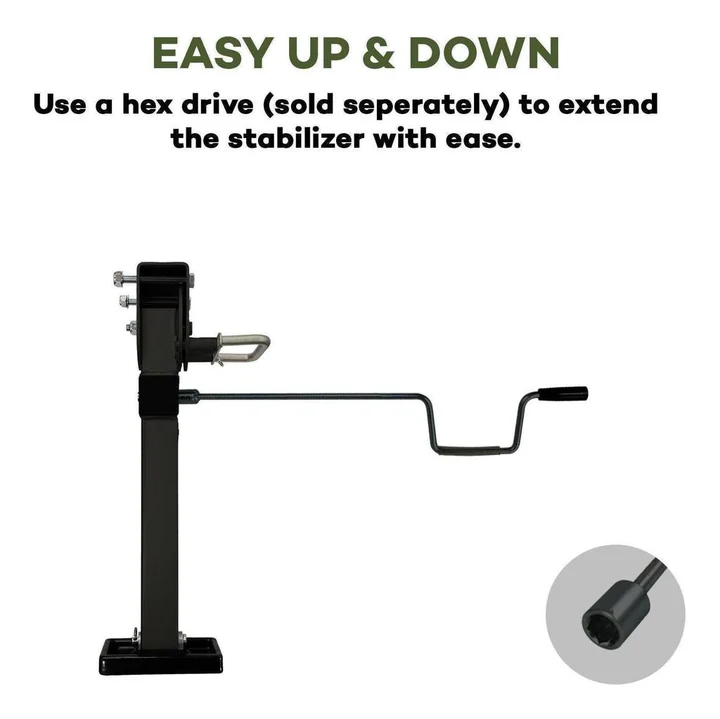

Operation: Works with 19mm Hex Winder Tool (sold separately)
Construction: Heavy-duty steel with black powder-coated finish
Compatibility: Suitable for caravans, camper trailers, boats, and motorcycle trailers
Compliance: Meets Australian caravan industry standards
