3 Rib Gearbox Jockey Unit – Model 473-003

This gearbox jockey unit is engineered for efficient lifting and adjustable height control. Its articulated base plate adapts to uneven surfaces, while the 3-rib construction enhances load capacity and precision.

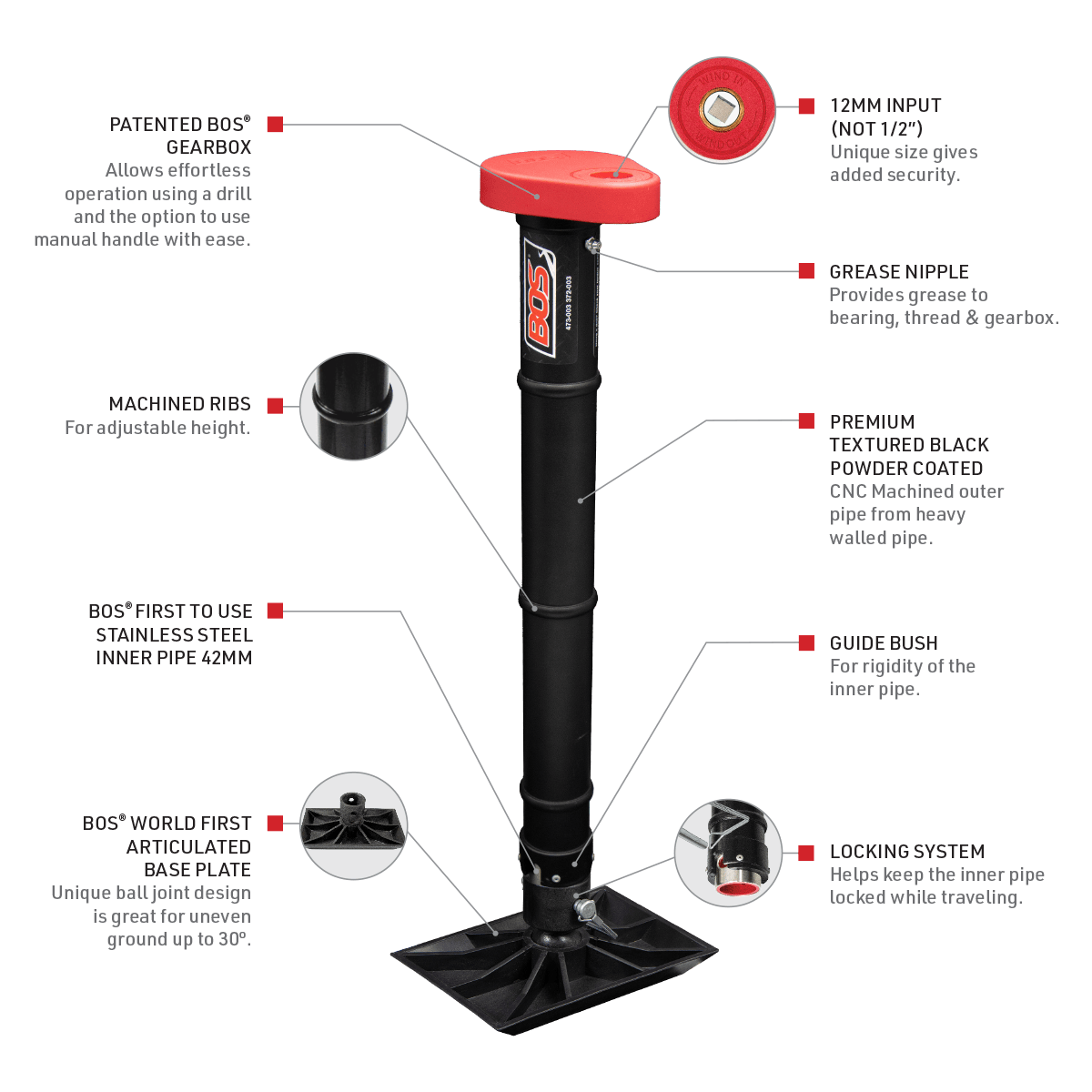

Features:

• Fits into existing 50mm clamp

• Gearbox allows effortless operation with drill or manual handle

• Load tested up to 1800kg in rigid clamp setup

• 400mm extended travel

• Can be left on while traveling using medium clutch setting and traveling strap

• Articulated base plate adjusts to uneven ground up to 30º

• 120mm pipe extension available for extra height

• Machined ribs for adjustable height

• Stainless steel inner pipe 42mm

• 12mm input compatible with drill or manual handle

• Grease nipple provides lubrication to bearing, thread & gearbox

• Premium textured black powder-coated CNC machined outer pipe

• Guide bush ensures inner pipe rigidity

• Locking system keeps inner pipe secure while traveling

Kit Includes:

• Articulated Base Plate – 010-062

• Manual Handle 12mm – 020-003

• 12mm Drill Drive Piece – 020-007

• 2x Quick Release Pin – 020-018

• Travel Strap – 370-STRAP

• Jockey Weather Cover – 020-037

• Stubby Can Cooler – 010-035

• Stubby Bottle Cooler – 010-036

• Stainless Steel Extension 120mm – 020-026

Optional Accessories:

• 8″ Double Offset Wheel – 200-060 (Sold Separately)

• Model: 473-003

• Clamp Size: 50mm diameter

• Maximum Load: 1800kg

• Extended Travel: 400mm

• Pipe Extension Available: 120mm

• Material: Powder-coated heavy-walled pipe, stainless steel inner pipe

• Drive Input: 12mm, compatible with drill or manual handle

• Base Plate: Articulated, adjustable up to 30º

• Warranty: 5 Years
