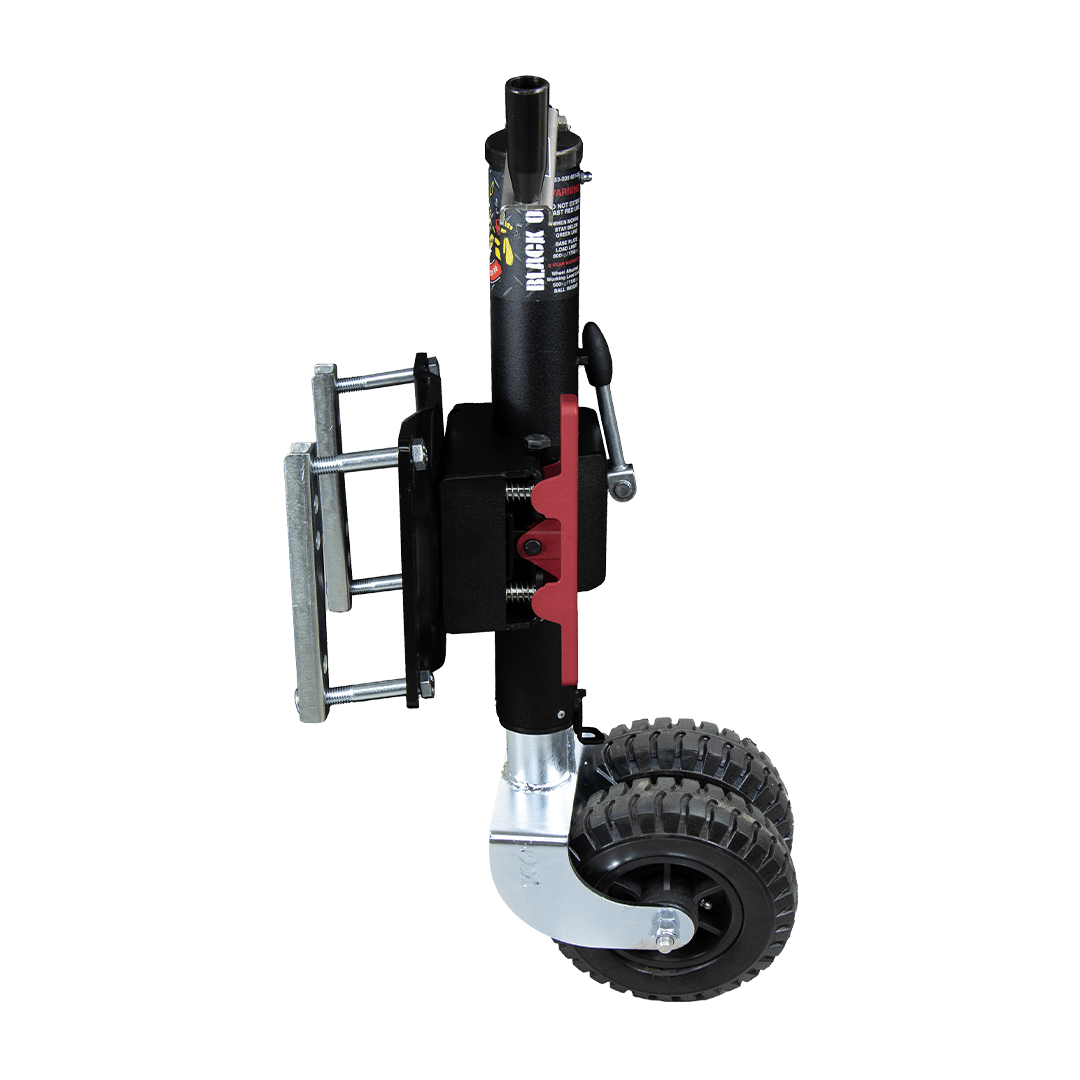

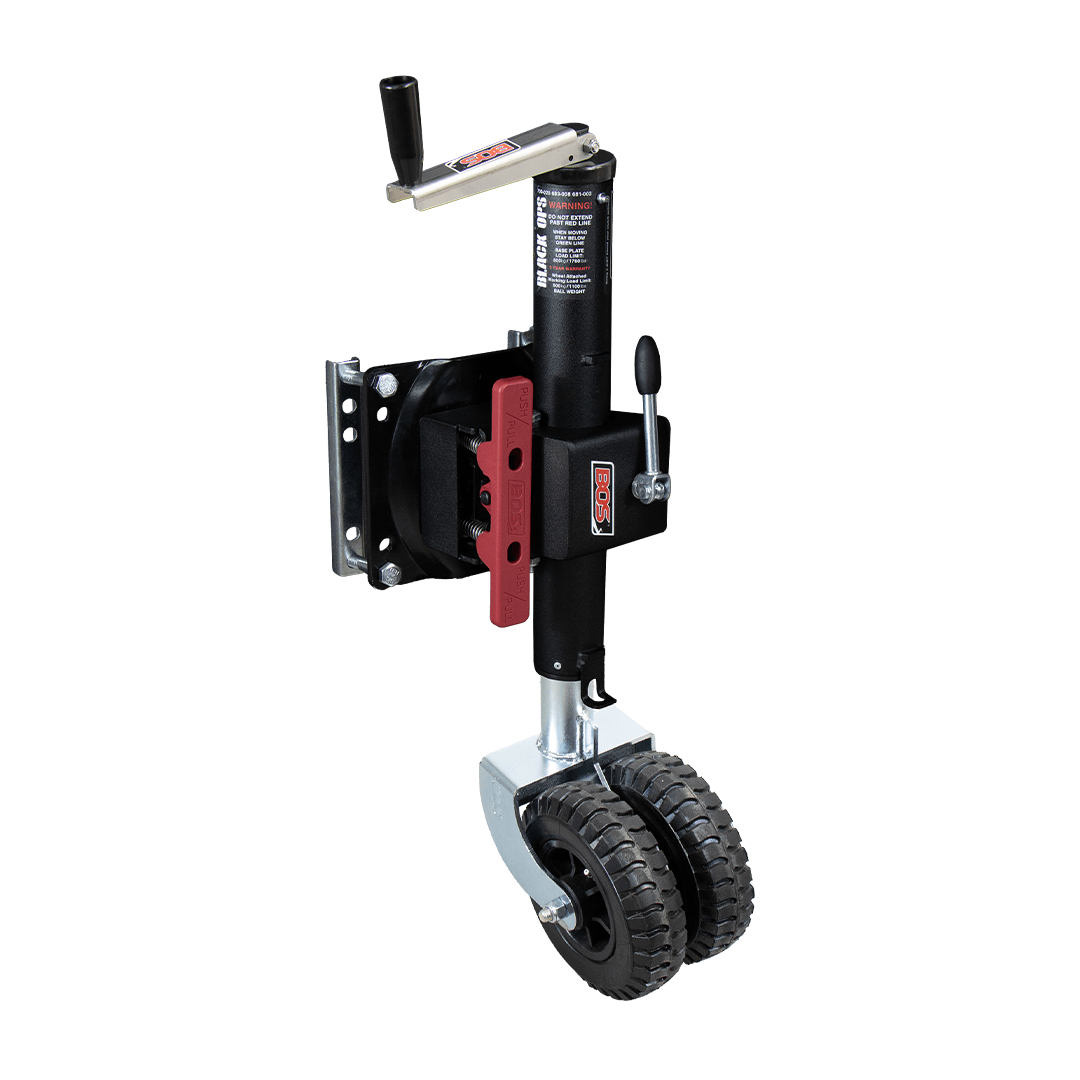

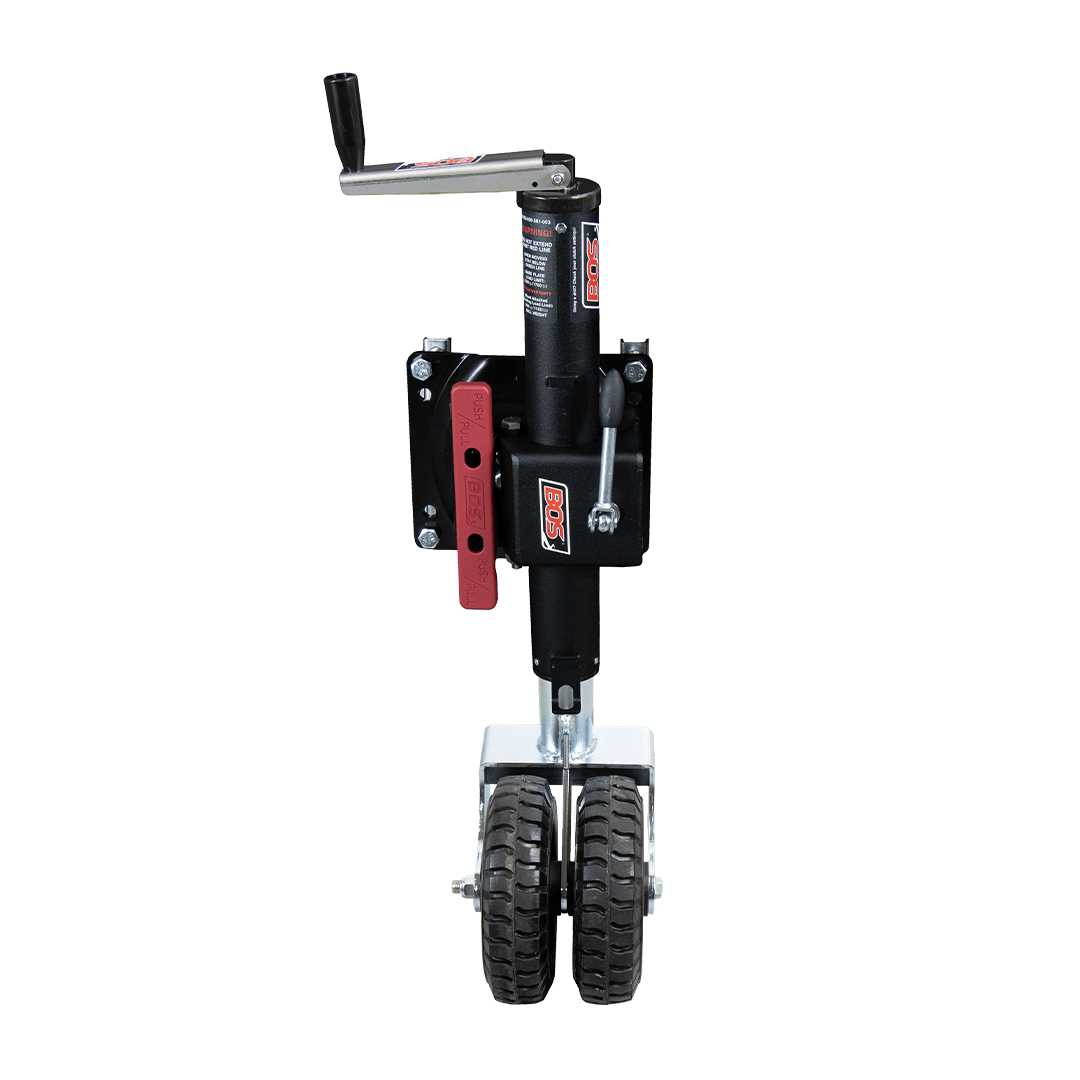

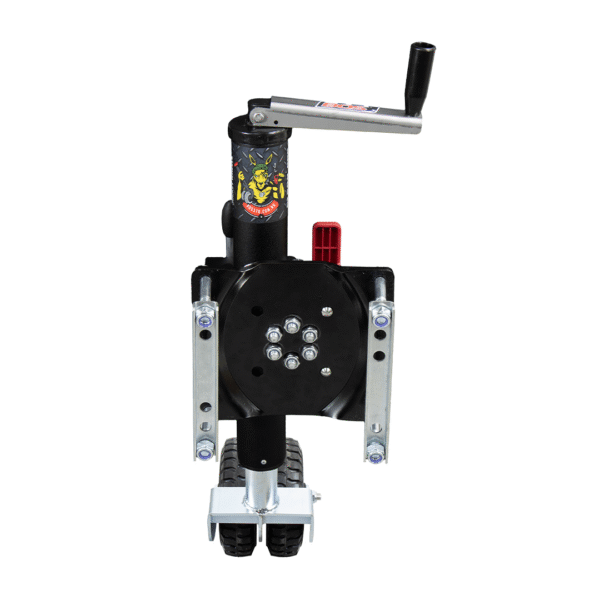

3 Lug Manual Welded Wheel Swing Away Unit – Model 682-008

This manual swing away unit provides reliable performance with a smooth lift under load and adjustable height. Built from a powder-coated heavy-walled pipe and stainless steel inner tube, it ensures strength, stability, and resistance to wear. Its offset wheel bracket design and wheel lock mechanism provide secure and efficient handling during towing or parking.

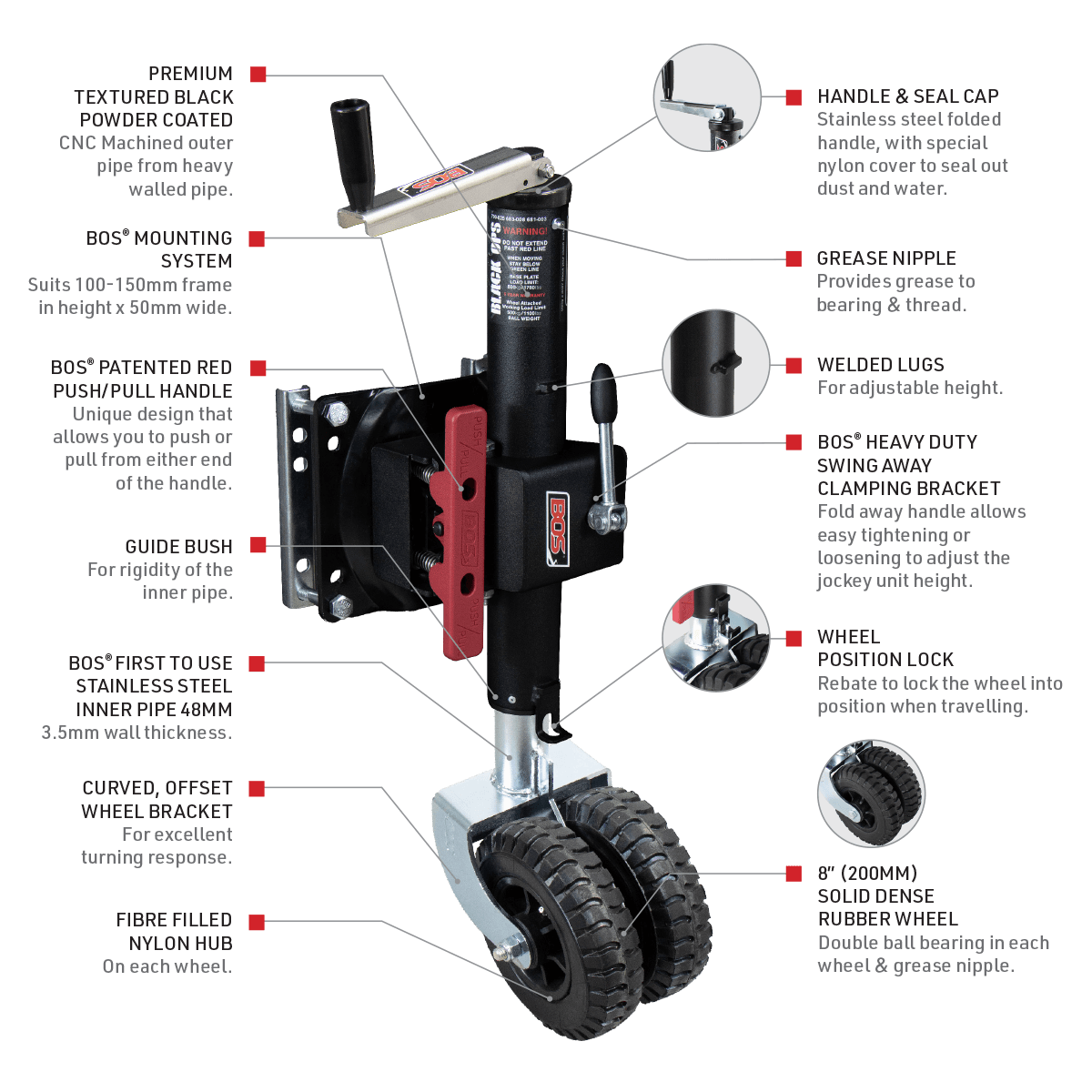

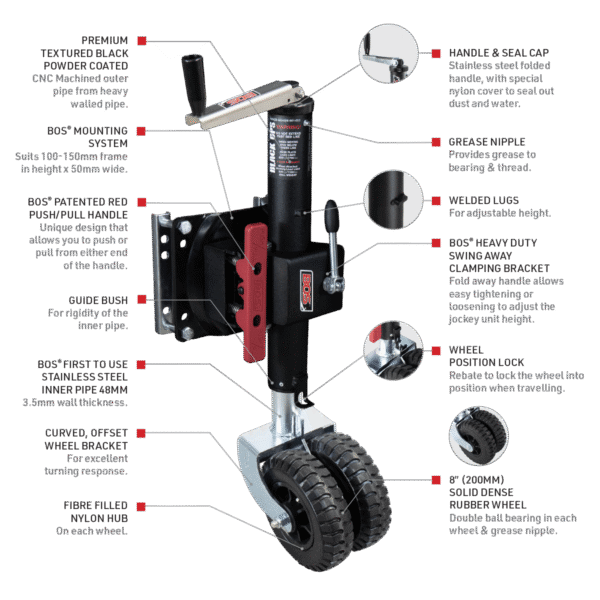

Features:

• Ideal for camper and work trailers where relocation with a wheel is required

• Adjustable swing away bracket for extra height if needed

• Smooth manual lifting operation under heavy load

• Load capacity up to 500kg

• 275mm extended travel

• Offset wheel bracket responsive for manual movement on single axle trailers

• Wheel position lock prevents ground contact under tow

• Fits draw bars 100–150mm high x 50mm wide

• 8” solid rubber wheel with grease nipple

• Stainless steel handle with nylon seal cap protects against dust and water

• Welded lugs for adjustable height

• Stainless steel inner pipe 48mm (reduces to 42mm)

• Grease nipple for bearing & thread

• Premium textured black powder-coated CNC machined outer pipe

• Guide bush ensures inner pipe rigidity

• Wheel position lock secures wheel while traveling

• Red push/pull handle allows easy operation from either end

• Heavy-duty swing away clamping bracket for quick adjustment

• Curved, offset wheel bracket for smooth turning

• Fibre filled nylon hub in each wheel

Kit Includes:

• Swing Away Bracket 60mm – 350-001

• Stubby Can Cooler – 010-035

• Stubby Bottle Cooler – 010-036

• Model: 682-008

• Clamp Size: 60mm diameter

• Maximum Load: 500kg

• Extended Travel: 275mm

• Material: Powder-coated heavy-walled pipe, stainless steel inner pipe

• Drive Input: Manual handle

• Wheel: 8” solid rubber, double ball bearing, grease nipple

• Base Plate / Mount: Swing away bracket, adjustable

• Draw Bar Compatibility: 100–150mm high x 50mm wide

• Warranty: 5 Years
