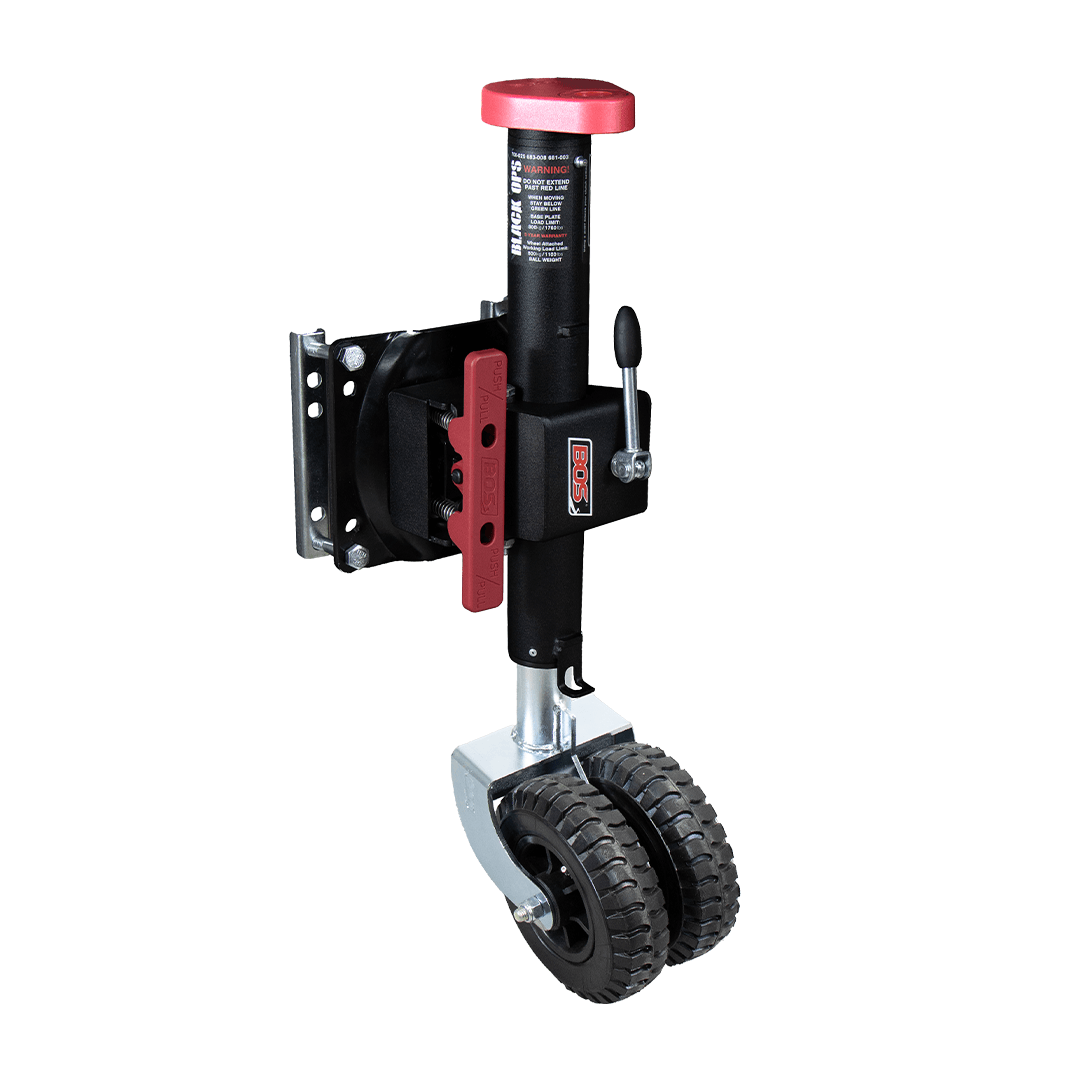

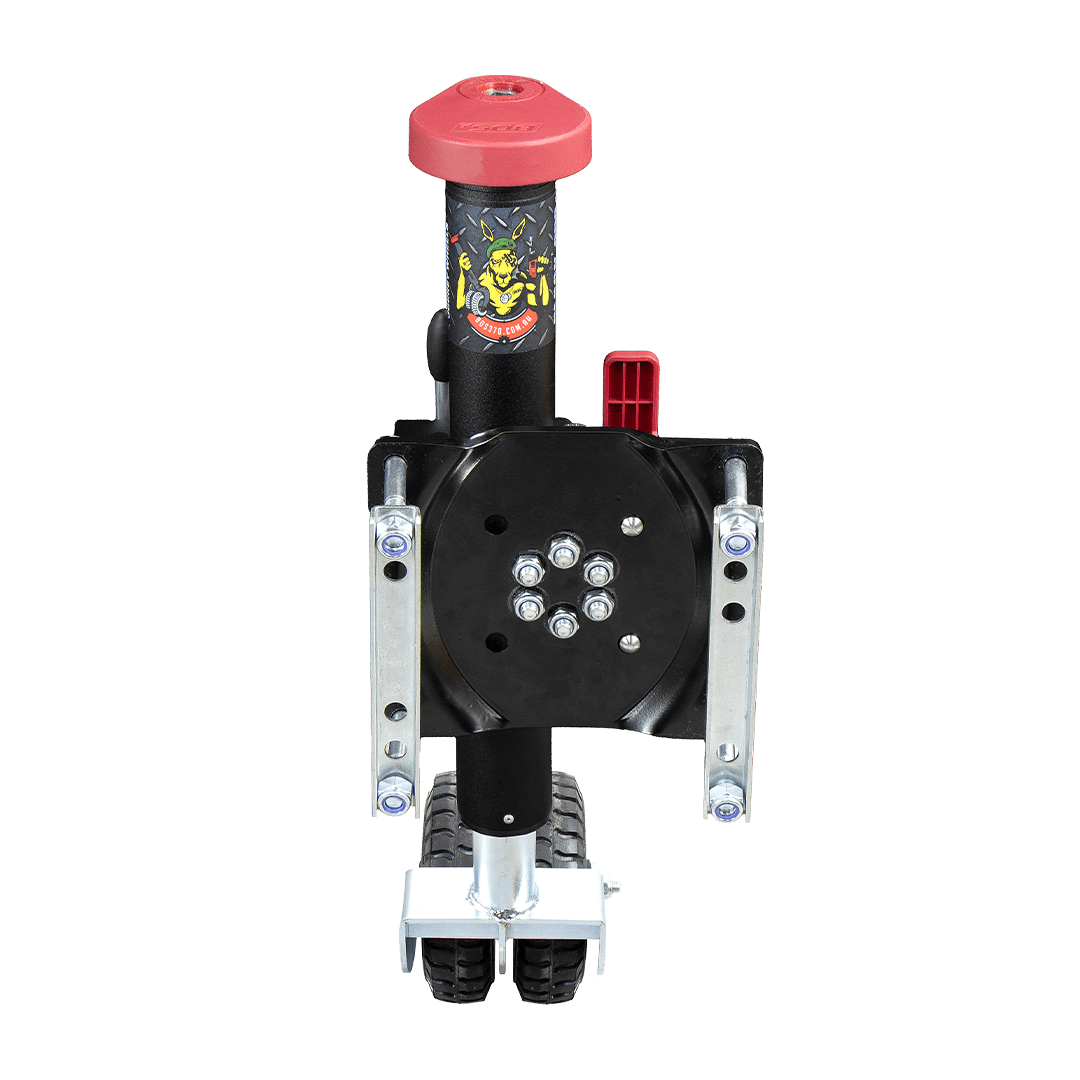

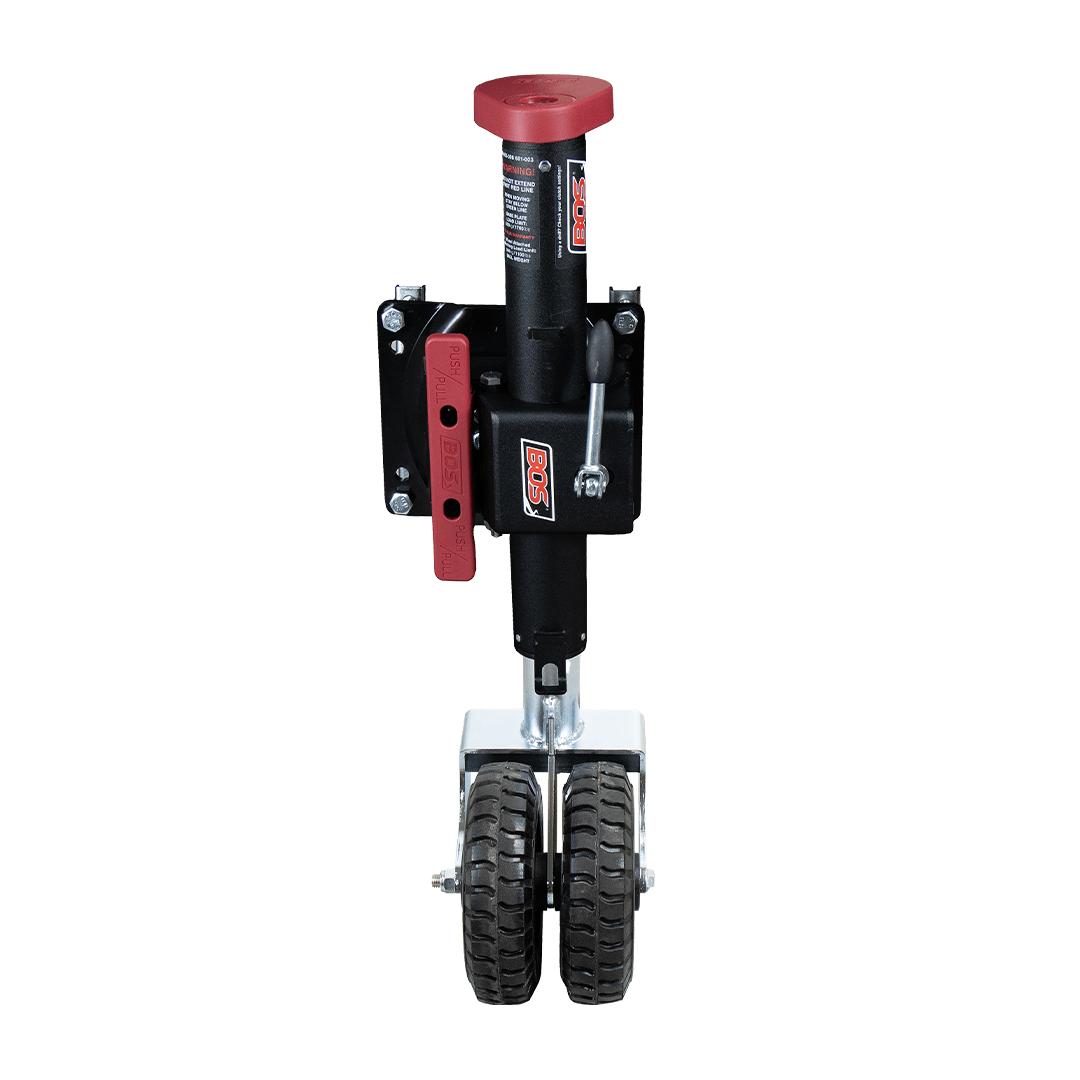

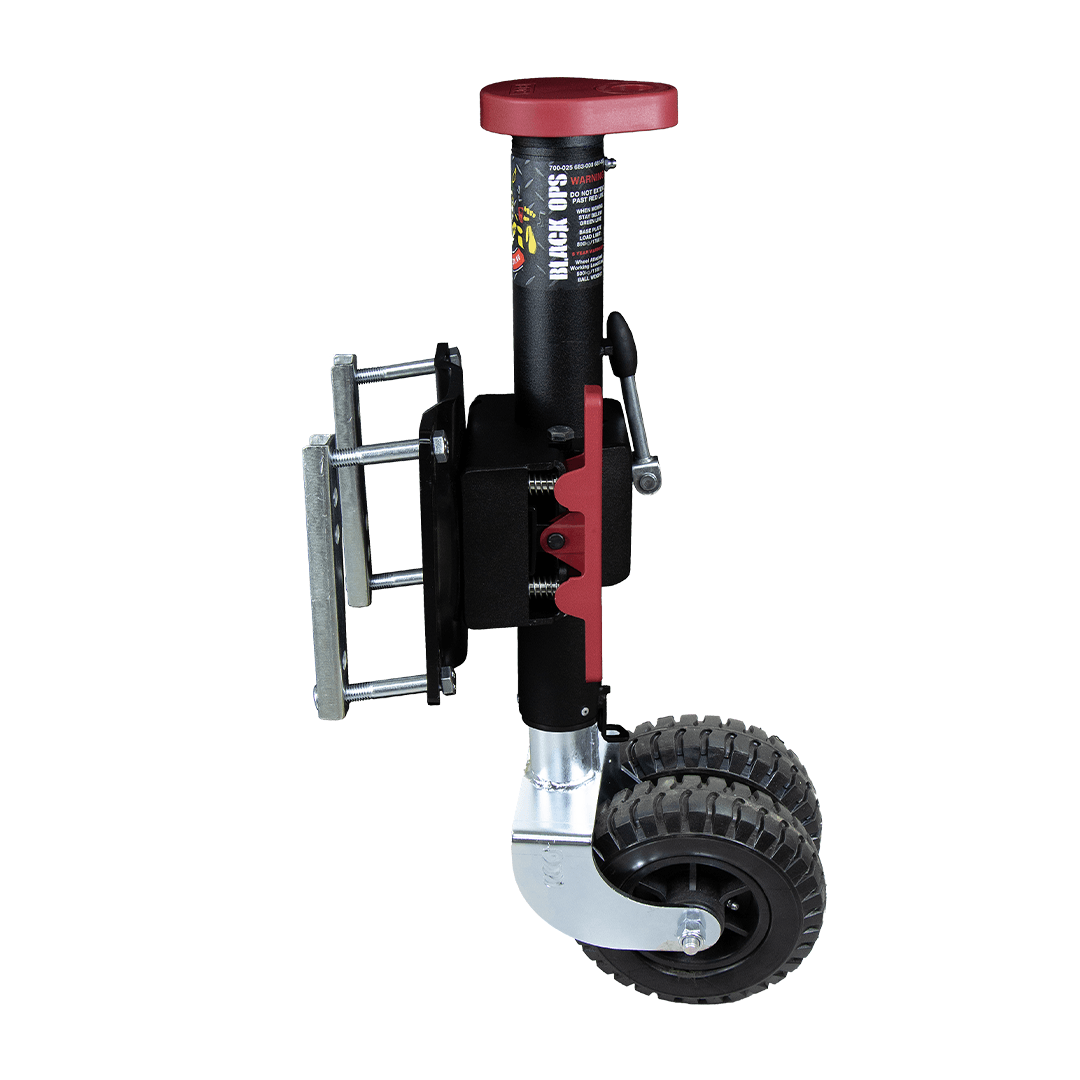

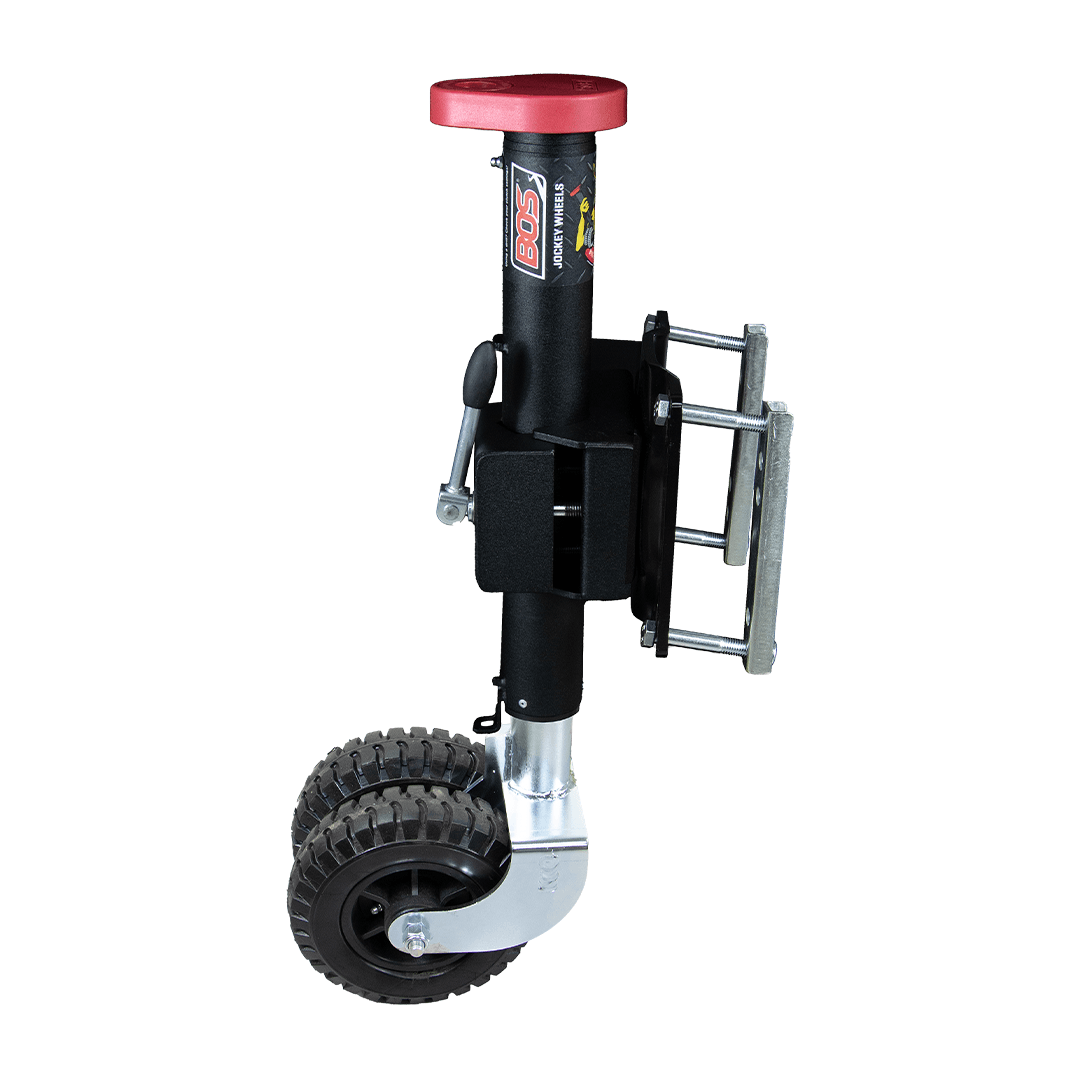

Heavy-duty swing away wheel unit with gearbox operation for smooth lifting using a drill or manual handle.
This swing away unit features a powerful gearbox for effortless lifting, even under load. Built with durable stainless steel and CNC-machined outer housing, it’s designed for precision, strength, and easy operation on single-axle trailers.

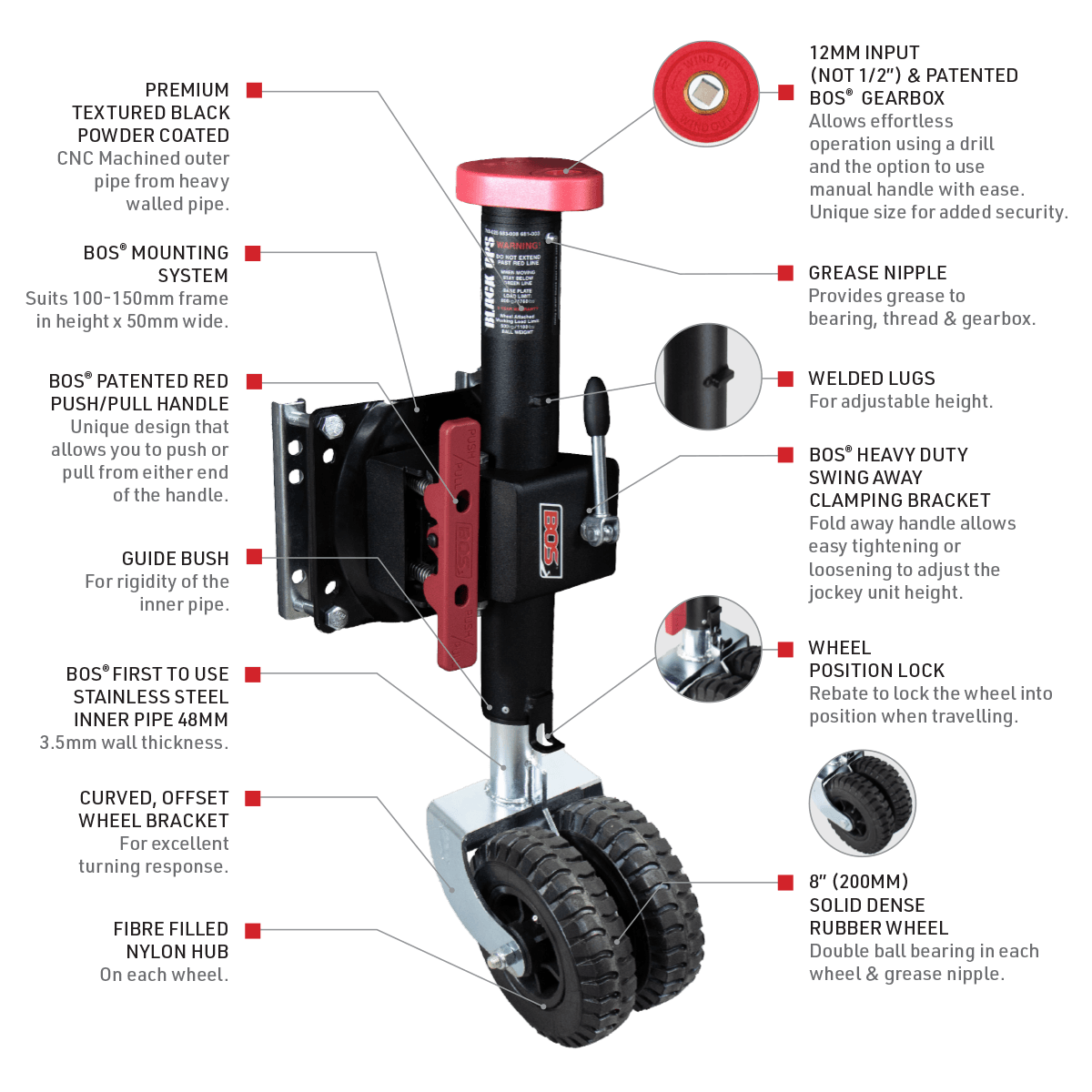

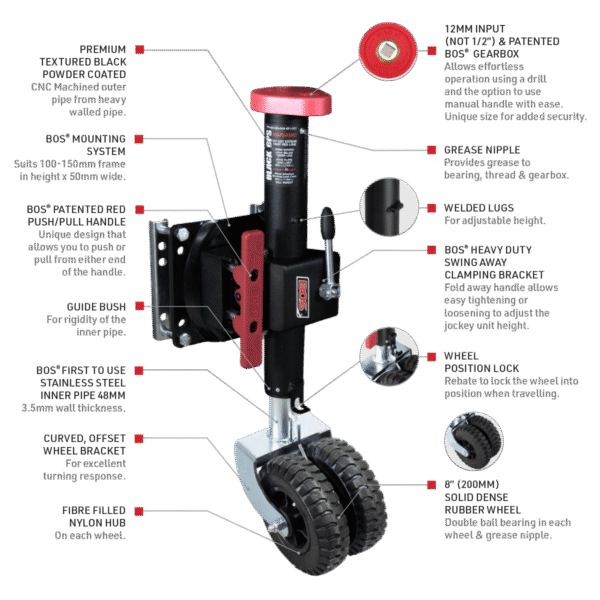

Features:
Ideal for camper and work trailers where relocation with a wheel is required
Adjustable swing away bracket provides extra height if needed
Gearbox allows effortless operation with cordless drill or manual handle
Load capacity up to 500kg
275mm extended travel
Offset wheel bracket responsive for manual movement on single axle trailers
Wheel position lock prevents ground contact under tow
Fits draw bars 100–150mm high x 50mm wide
8” solid rubber wheel with grease nipple
12mm input for added security
Welded lugs for adjustable height
Stainless steel inner pipe 48mm (reduces to 42mm)
Grease nipple for bearing, thread & gearbox
Premium textured black powder-coated CNC machined outer pipe
Guide bush ensures inner pipe rigidity
Red push/pull handle for easy rotation
Heavy-duty swing away clamping bracket for easy adjustment
Curved, offset wheel bracket for smooth turning
Fibre filled nylon hub in each wheel
8” (200mm) solid dense rubber wheel with double ball bearing and grease nipple
Kit Includes:
Swing Away Bracket 60mm – 350-001
Stainless Steel Extension 120mm – 020-026
12mm Drill Drive Piece – 020-007
Manual Handle 12mm – 020-003
Jockey Weather Cover – 020-037
Stubby Can Cooler – 010-035
Stubby Bottle Cooler – 010-036
Model: 683-008
Clamp Size: 60mm diameter
Maximum Load: 500kg
Extended Travel: 275mm
Pipe Extension Available: 120mm
Material: Powder-coated heavy-walled pipe, stainless steel inner pipe
Drive Input: 12mm, compatible with drill or manual handle
Wheel: 8” solid rubber, double ball bearing, grease nipple
Base Plate / Mount: Swing away bracket, adjustable
Draw Bar Compatibility: 100–150mm high x 50mm wide
Warranty: 5 Years
